Designed to significantly lower intake temperatures by injecting water and/or methanol into the forced induction circuit, this AEM V3 WMI kit is an affordable and easy-to-use solution to increase petrol turbo / supercharged engines power by up to 20%. Coming with 3 differents flow rate injectors, to installed between the intercooler and the throttle body (on the chargepipe for example), this V3 kit comes with a 4.3L tank, an electronic controller and a 2.5 bars MAP sensor, allowing automatic activation according to boost pressure. Limiting knocks, lowering exhaust and intake temperatures while ensuring the elimination of post-combustion impurity deposits, this AEM water / methanol injection kit is as reliable as efficient for any original or highly tuned engines !
-
Specific kit for forced induction gasoline engines

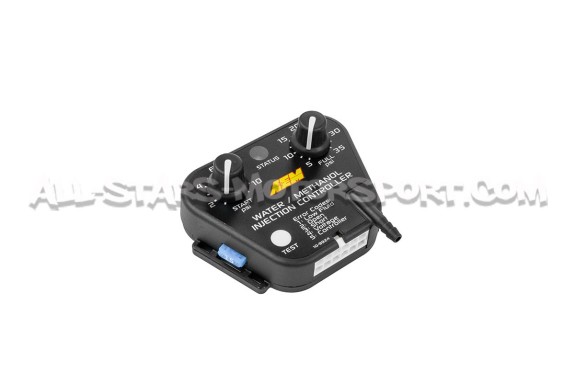

Electronic V3 controller

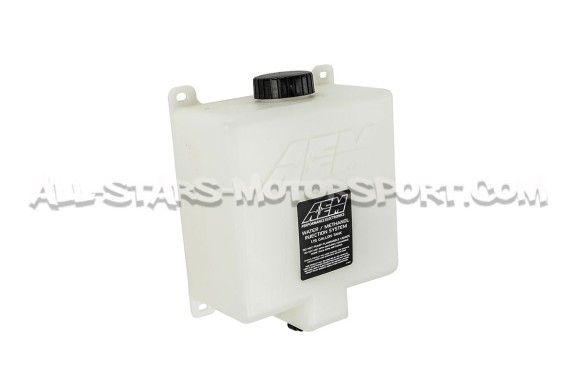

4.3L tank included
2.5 bars MAP sensor
250cc / 500cc and 1000cc injectors included
Ideal water / methanol ratio : 50/50

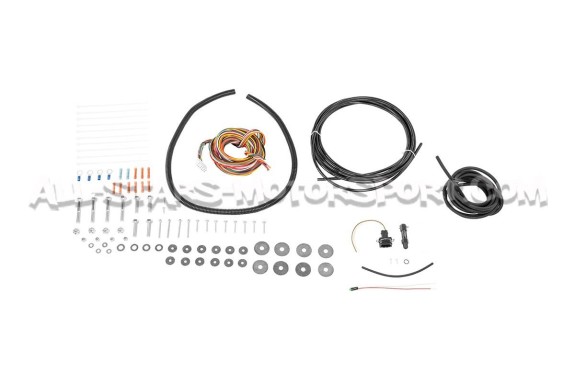

Mounting hardware included
Assembly instructions included
Made in USA
Brand | Model | Type | Version |
---|---|---|---|
Abarth / Fiat | 595 / 695 | 312 - 08-... | Abarth - 135 / 140 / 160 |
Abarth / Fiat | 595 / 695 | 312 - 08-... | Abarth - 165 / 180 / 190 |
Audi | A1 | 8X - 10-18 | 1.4 TFSI - 185 |
Audi | A1 | 8X - 10-18 | 1.8 TFSI - 192 |
Audi | A3 | 8P - 04-12 | 2.0 TFSI - 200 |
Audi | A3 | 8P - 04-12 | 2.0 TFSI - 200 Quattro |
Audi | A3 | 8V / 8.5V - 12-20 | 2.0 TFSI - 190 / 220 |
Audi | A4 | B8 / 8.5 - 07-15 | 2.0TFSI - 180 / 211 |
Audi | A4 | B9 - 15-... | 2.0 TFSI - 252 |
Audi | A5 | 8T- 07-15 | 2.0 TFSI - 180 / 211 |
Audi | A5 | 8T- 07-15 | 2.0 TFSI - 225 / 230 |
Audi | A5 | F5 - 16 -... | 2.0 TFSI 252 |
Audi | RS3 | 8.5V - 17-21 | 2.5 TFSI - 400 |
Audi | RS3 | 8P - 11-15 | 2.5 TFSI - 340 |
Audi | RS3 | 8V - 15-17 | 2.5 TFSI - 367 |
Audi | RS3 | 8Y - 21-... | 2.5TFSI - 400 |
Audi | RS4 | B5 - 00-01 | 2.7 T - 380 |
Audi | RS4 | B9 - 17-... | 2.9 TFSI - 450 |
Audi | RS5 | F5 - 17-... | 2.9TFSI - 450 |
Audi | RS6 | C5 - 02-04 | 4.2T - 450 / 480 |
Audi | RS6 | C6 - 04-11 | 5.0 TFSI - 580 |
Audi | RS6 | C7 - 12-19 | 4.0 TFSI - 560 / 605 |
Audi | RS6 | C8 - 20-... | 4.0 TFSI - 600 |
Audi | RS7 | C7 - 13-19 | 4.0 TFSI - 560/605 |
Audi | RS7 | C8 - 19-... | 4.0 TFSI 600 |
Audi | RSQ3 | F3 - 19-... | 2.5 TFSI -400 |
Audi | S1 | 8X - 14-18 | 2.0 TFSI - 231 |
Audi | S3 | 8L - 96-03 | 1.8T - 210 / 225 |
Audi | S3 | 8P - 06-12 | 2.0 TFSI - 265 |
Audi | S3 | 8V / 8.5V - 13-20 | 2.0 TFSI - 300 / 310 |
Audi | S3 | 8Y - 20-... | 2.0TFSI - 310 |
Audi | S4 | B5 - 97-02 | 2.7 T - 265 |
Audi | S4 | B8 / 8.5 - 09-15 | 3.0TFSI - 333 |
Audi | S4 | B9 - 16-21 | 3.0 TFSI - 354 |
Audi | S5 | 8T - 07-15 | 3.0 TFSI - 333 |
Audi | S5 | F5 - 16-... | 3.0 TFSI 354 |
Audi | SQ2 | GA - 16-... | 2.0 TFSI - 300 |
Audi | TT | 8J - 06-13 | 2.0 TFSI - 211 |
Audi | TT | 8J - 06-13 | 2.0TFSI - 200 |
Audi | TT | 8J - 06-13 | 3.2FSI - 250 |
Audi | TT | 8J - 06-13 | TTRS 2.5 TFSI - 340 / 360 |
Audi | TT | 8J - 06-13 | TTS 2.0 TFSI - 272 |
Audi | TT | 8N - 96-06 | 1.8T - 150 / 180 / 190 |
Audi | TT | 8N - 96-06 | 1.8T - 225 / 240 |
Audi | TT | 8S - 14-20 | 2.0 TFSI - 230 |
Audi | TT | 8S - 14-20 | TTRS 2.5 TFSI - 400 |
Audi | TT | 8S - 14-20 | TTS 2.0 TFSI - 310 |
BMW | 1 Series | E8x - 08-13 | 135i - 306 |
BMW | 1 Series | E8x - 08-13 | 1M - 340 |
BMW | 1 Series | F2x - 11-20 | 135i - 320 / 326 |
BMW | 1 Series | F2x - 11-20 | 140i - 340 |
BMW | 1 Series | F4x - 20-... | 135 i - 306 |
BMW | 2 Series | Fxx -13-20 | 235i - 326 |
BMW | 2 Series | Fxx -13-20 | 240i - 340 |
BMW | 2 Series | Fxx -13-20 | M2 - 370 |
BMW | 2 Series | Fxx -13-20 | M2C - 410 / 450 |
BMW | 2 Series | Gxx - 20-... | 235i - 306 |
BMW | 2 Series | Gxx - 20-... | 240i - 374 |
BMW | 2 Series | Gxx - 20-... | M2 - 460 |
BMW | 3 Series | E9x - 06-13 | 335i - 306 |
BMW | 3 Series | Fxx - 13-19 | 335i -306 |
BMW | 3 Series | Fxx - 13-19 | 340i - 326 / 360 |
BMW | 3 Series | Fxx - 13-19 | M3 - 431 / 450 / 460 |
BMW | 3 Series | Gxx - 19-... | 340i - 374 |
BMW | 3 Series | Gxx - 19-... | M3 - 480 / 510 |
BMW | 4 Series | Fxx- 13-19 | 435i - 306 |
BMW | 4 Series | Fxx- 13-19 | 440i - 326 |
BMW | 4 Series | Fxx- 13-19 | M4 - 431 / 450 / 460 |
BMW | 4 Series | Gxx- 19-... | 440i - 374 |
BMW | 4 Series | Gxx- 19-... | M4 - 480 / 510 |
BMW | 5 Series | F1x - 10-16 | M5 - 560 / 575 / 600 |
BMW | 5 Series | F9x - 16-20 | M5 - 600 / 625 |
BMW | 6 Series | F1x - 12-19 | M6 - 560 / 575 / 600 |
BMW | 8 Series | F9x - 18-... | M8 - 600 / 625 |
BMW | X3 / X4 | F9x - 19-... | M - 480 / 510 |
Citroen | DS3 | A55 - 09-20 | 1.6THP- 150/156/165/202 |
Ford | Fiesta | MK7 - 10-17 | ST - 180 / 200 |
Ford | Fiesta | MK8 - 18-... | ST - 200 |
Ford | Focus | MK2 - 05-11 | RS - 305 / 350 |
Ford | Focus | MK2 - 05-11 | ST - 225 |
Ford | Focus | MK3 - 11-18 | RS - 350 |
Ford | Focus | MK3 - 11-18 | ST - 250 |
Ford | Focus | MK4 - 19-... | ST - 280 |
Ford | Mustang | S550 - 15-20 | 2.3T - 317 / 290 |
Honda | Civic | FK - 15-17 | Type R - 310 |
Honda | Civic | FK - 17-22 | Type R - 320 |
Honda | Civic | FL - 23-... | Type R - 330 |
Hyundai | I20 | BC3 - 21-... | N - 204 |
Hyundai | I30 | PD - 17-... | N - 250 / 275 |
Kia | Stinger | CK - 17-... | 3.3 T-GDI - 370 |
Mazda | Mazda 3 | BK - 04-09 | MPS - 260 |
Mazda | Mazda 3 | BL - 09-13 | MPS 260 |
Mercedes-Benz | A Class | W176 - 12-18 | 45 AMG - 367 / 381 |
Mercedes-Benz | A Class | W177 - 18-... | 35 AMG - 306 |
Mercedes-Benz | A Class | W177 - 18-... | 45 AMG - 387 / 421 |
Mercedes-Benz | AMG GT | C190 -15-21 | 4.0T - GT/GTS/GTC/GTR |
Mercedes-Benz | CLA | C117 - 12-18 | 45 AMG - 367/381 |
Mercedes-Benz | CLA | C118 - 18-... | 35AMG - 306 |
Mercedes-Benz | CLA | C118 - 18-... | 45AMG - 387 / 421 |
Mini | Cooper S | F5x - 14-... | 2.0T - 192 |
Mini | Cooper S | F5x - 14-... | GP3 - 306 |
Mini | Cooper S | F5x - 14-... | JCW - 211 / 231 |
Mini | Cooper S | R5x - 06-15 | 1.6T - 175 / 184 |
Mini | Cooper S | R5x - 06-15 | JCW - 211 / 218 |
Mitsubishi | Lancer | Evo 10 - 07-15 | 2.0T - 295cv / 303cv |
Mitsubishi | Lancer | Evo 8/9 -03-07 | 2.0T - 265cv / 286cv / FQ |
Nissan | 200sx | S13 - 89-94 | 1.8T - 171 |
Nissan | 200sx | S14 - 94-00 | 2.0T - 200 |
Nissan | GTR | R35 - 08-... | 3.8- 485/530/550/570/600 |
Opel | Astra | H - 04-09 | VXR - 240 |
Opel | Astra | J - 09-15 | VXR - 280 |
Opel | Corsa | D - 06-14 | OPC Nurburgring - 210 |
Opel | Corsa | D - 06-14 | VXR - 192 - 06-10 |
Opel | Corsa | D - 06-14 | VXR - 192 - 10-14 |
Opel | Corsa | E - 14-19 | VXR - 207 |
Peugeot | 208 | PF1 - 10-19 | GTI - 200 / 208 |
Porsche | 911 | 991 - 11-19 | Turbo - 520/540/560/580 |
Porsche | 911 | 992 - 19-... | Turbo - 580 / 650 |
Renault | Clio | MK4 - 12-19 | RS - 200 - 12-15 |
Renault | Clio | MK4 - 12-19 | RS - 200 - 15-19 |
Renault | Clio | MK4 - 12-19 | RS Trophy - 220 |
Renault | Megane | MK4 - 18-... | RS - 280 / 300 |
Renault | Megane | Mk2 - 04-09 | RS - 225 / 230 |
Renault | Megane | Mk3 - 09-16 | RS - 250 / 265 / 275 |
Seat / Cupra | Formentor | KM - 20-... | 2.0 TSI - 310 |
Seat / Cupra | Ibiza | 6J - 08-15 | Cupra - 180 |
Seat / Cupra | Ibiza | 6K - 99-02 | Cupra 180 |
Seat / Cupra | Ibiza | 6L - 02-08 | Cupra-180 |
Seat / Cupra | Ibiza | 6P - 15-17 | Cupra - 192 |
Seat / Cupra | Leon | 1M - 99-06 | 1.8T - 150 / 180 |
Seat / Cupra | Leon | 1M - 99-06 | Cupra R - 210 / 225 |
Seat / Cupra | Leon | 1P - 05-12 | 2.0TFSI - 200 |
Seat / Cupra | Leon | 1P - 05-12 | 2.0TSI - 211 |
Seat / Cupra | Leon | 1P - 05-12 | Cupra - 240 / 265 |
Seat / Cupra | Leon | 5F - 12-20 | Cupra - 265 / 280 / 290 / 300 / 310 |
Seat / Cupra | Leon | 5F - 12-20 | Cupra 4 Drive - 300 |
Skoda | Fabia | 5J - 08-14 | vRS - 180 |
Skoda | Octavia | 1Z - 04-13 | vRS - 200 - 04-08 |
Skoda | Octavia | 1Z - 04-13 | vRS - 200 - 09-13 |
Skoda | Octavia | 5E - 13-20 | vRS - 220 / 230 / 245 |
Skoda | Octavia | NX - 20-... | RS - 245 (2.0) |
Subaru | Impreza | GC - 96-00 | GT - 211 / 217 |
Subaru | Impreza | GD - 01-07 | STI - 265 |
Subaru | Impreza | GD - 01-07 | STI - 280 |
Subaru | Impreza | GD - 01-07 | WRX - 218 / 225 / 230 |
Subaru | Impreza | GR - 08-11 | STI 300 |
Subaru | Impreza | GV - 11-14 | STI-300 |
Subaru | Impreza | VA - 14-18 | STI - 300 |
Toyota | Supra | A90 - 19-... | 3.0T - 340 |
Toyota | Yaris | GA-B - 20-... | GR - 261 |
Volkswagen | Golf | MK4 - 98-04 | GTI 150 / 180 |
Volkswagen | Golf | MK5 - 04-09 | GTI - 200 |
Volkswagen | Golf | MK5 - 04-09 | GTI Ed30 / Pirelli - 230 |
Volkswagen | Golf | MK6 - 09-12 | GTI - 211 |
Volkswagen | Golf | MK6 - 09-12 | GTI Ed35 - 235 |
Volkswagen | Golf | MK6 - 09-12 | R - 265 / 270 |
Volkswagen | Golf | MK7 - 13-17 | GTI - 220 / 230 |
Volkswagen | Golf | MK7 - 13-17 | GTI Clubsport - 265 |
Volkswagen | Golf | MK7 - 13-17 | R - 300 |
Volkswagen | Golf | MK7 - 13-17 | R - Estate / SW - 300 |
Volkswagen | Golf | MK8 - 20-... | GTI - 245 |
Volkswagen | Golf | MK8 - 20-... | GTI Clubsport - 300 |
Volkswagen | Golf | MK8 - 20-... | R - 320 |
Volkswagen | Golf | Mk7.5 - 17-20 | GTI - 230 / 245 |
Volkswagen | Golf | Mk7.5 - 17-20 | GTI TCR - 290 |
Volkswagen | Golf | Mk7.5 - 17-20 | R - 310 |
Volkswagen | Golf | Mk7.5 - 17-20 | R - Estate / SW - 310 |
Volkswagen | Polo | 6C - 14-17 | GTI - 192 |
Volkswagen | Polo | 6R - 09-14 | GTI - 180 |
Volkswagen | Polo | 6R - 09-14 | WRC - 220 |
Volkswagen | Polo | 9N - 05-09 | GTI - 150 / 180 |
Volkswagen | Polo | AW - 17-... | GTI 200 |
Volkswagen | Scirocco | MK3 - 08-17 | 2.0 TSI - 211 |
Volkswagen | Scirocco | MK3 - 08-17 | 2.0TFSI 200 |
Volkswagen | Scirocco | MK3 - 08-17 | R - 265 / 280 |
Volkswagen | UP! | AA - 17-... | GTI - 115 |
...See more compatibilities Reduce... |
Download Instructions
AEM Performance Electronics products are warranted for a 1-year, unlimited mileage period from the date of original purchase. AEM’s warranties are not transferable when ownership of the vehicle into which the AEM products were originally installed is sold. To obtain service under this warranty, products must be brought / shipped, upon discovery of a malfunction or defect in materials and/or workmanship, to any Authorized AEM Dealer. In the event of a warranty claim, AEM will repair or replace, at its sole discretion, any defective AEM component. This warranty does not include reimbursement for repairs to any original vehicle manufacturer’s component(s) that may have been affected by an AEM component, labor charges associated with the repair or shipping to dealer charges.
For purposes of illustration, but not limitation, the following are not defects in material or workmanship: (a) normal wear and tear and/or required maintenance; (b) improper handling, storage, installation, lubrication or maintenance; (c) damage resulting from or related to misuse (including use in a way other than those applications recommended by AEM), abuse, unauthorized modification or alteration, incorrect polarity (+&- wires crossed), accident, acts of God, or external causes; and (d) cosmetic damage (nicks, bruising, discoloration).
