JE Forged Pistons for S3 8V / Golf 7 GTI / Golf 7 R / Leon 3 Cupra ...

Real Pictures JE Forged Pistons for S3 8V / Golf 7 GTI / Golf 7 R / Leon 3 Cupra 2.0 TSI EA888.3

View larger

Real Pictures

JE Forged Pistons for S3 8V / Golf 7 GTI / Golf 7 R / Leon 3 Cupra 2.0 TSI EA888.3

Reference:

EC Approved: NO

Shipped from the EU

1 067,86 €

747,50 € VAT incl.

Bore

Quantity

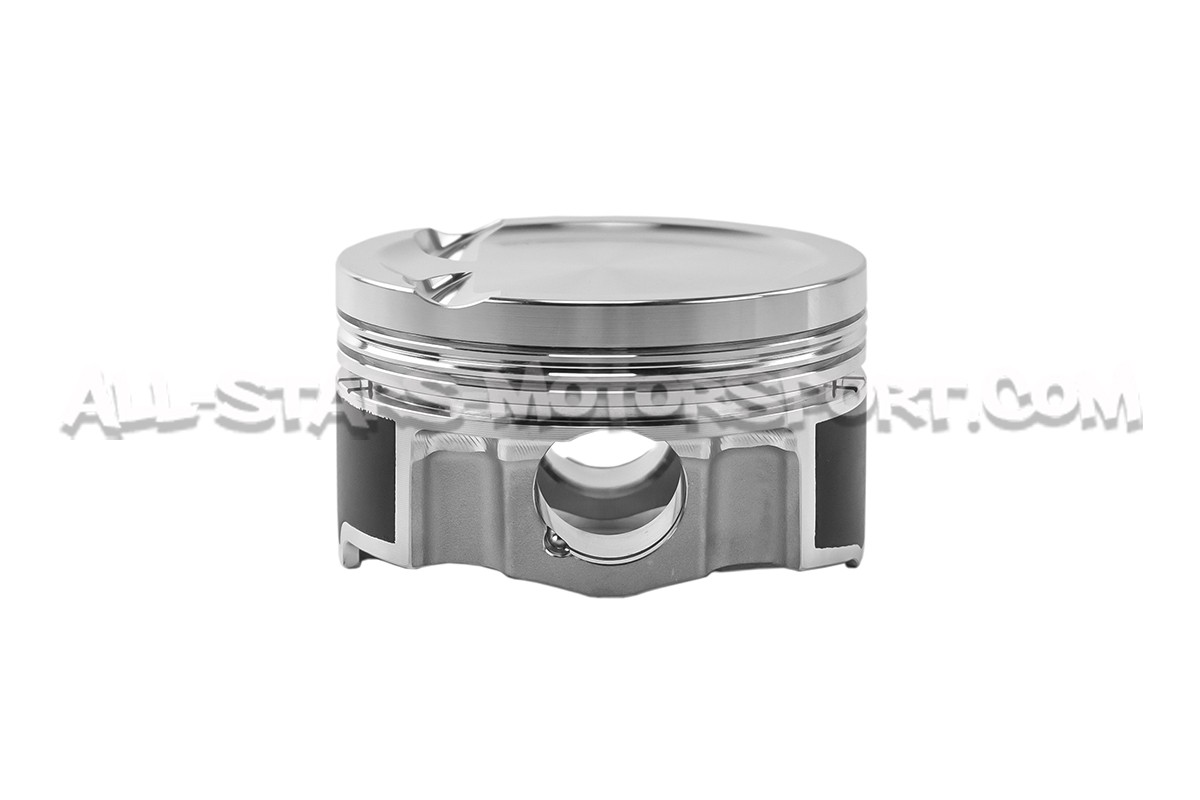

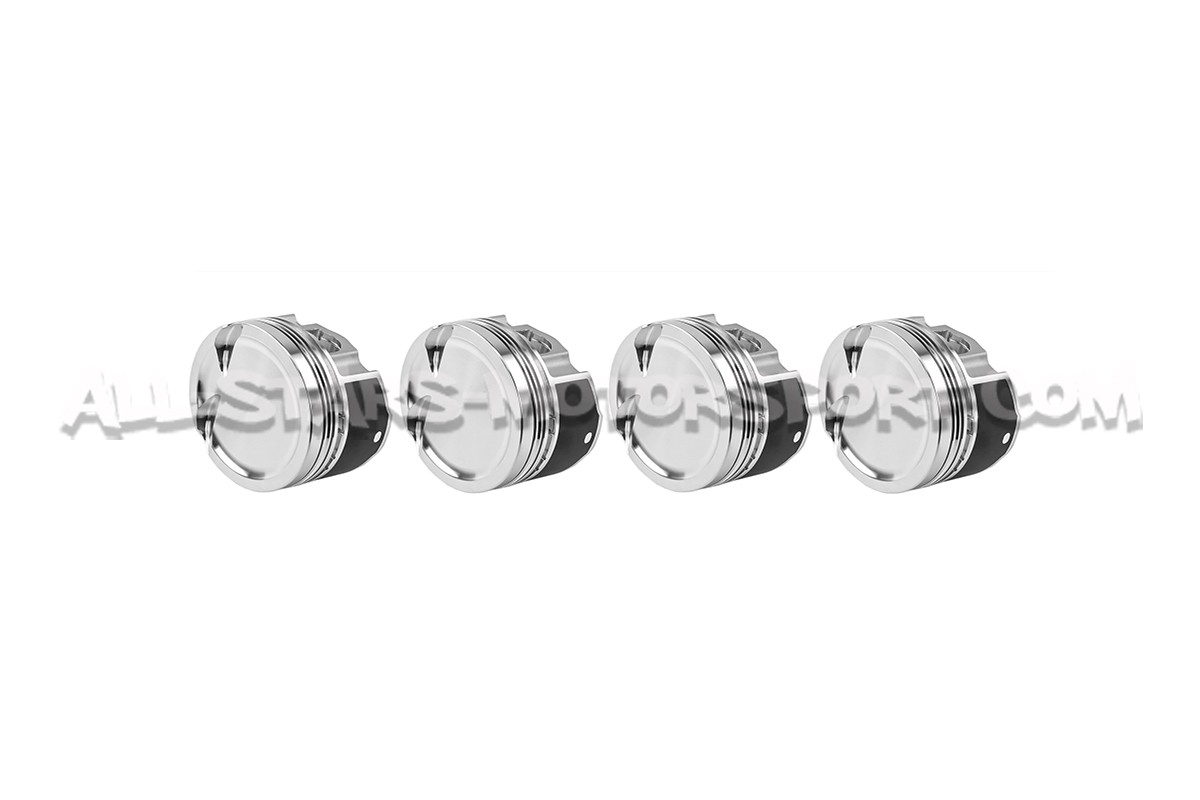

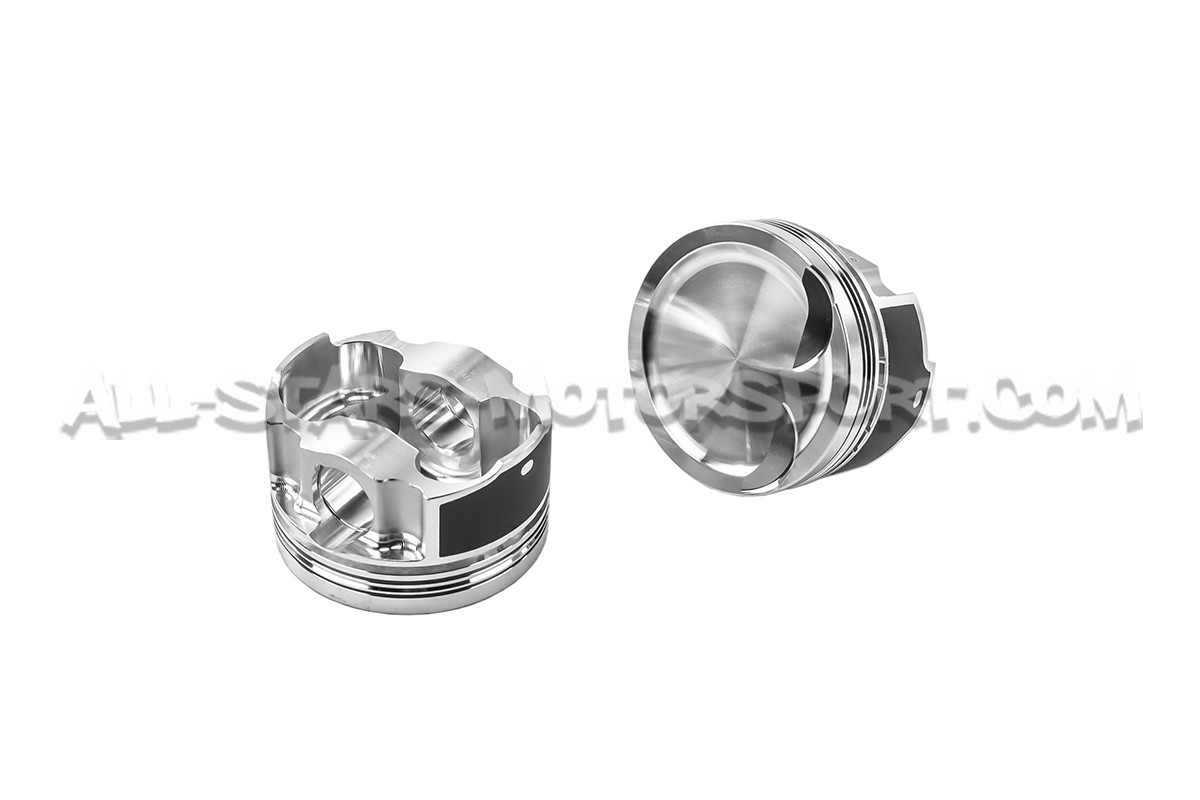

Made in the USA by JE Pistons from high strength 2618 aluminum, this 4 forged pistons kit for the 2.0 TFSI EA888.3 engines of the S3 8V / Golf 7 GTI / Golf 7 R / Leon 3 Cupra etc ... exists in 3 different bores : 82.5mm (OEM) / 83.0 or 83.5 (machined engine). Coming with locks, rings and fitting kit (compatible with 22mm pin pistons), these pistons, designed to withstand extreme powers, offer an original compression ratio.

- Select your bore -

Direct bolt on (22mm axis)

4 pieces kit

2618 forged (FSR) aluminum alloy

Pin : 22mm

Bore : 82.5mm (OEM) / 83.0mm (+0.5) or 83.5mm (+1)

Compression ratio : 9.6:1

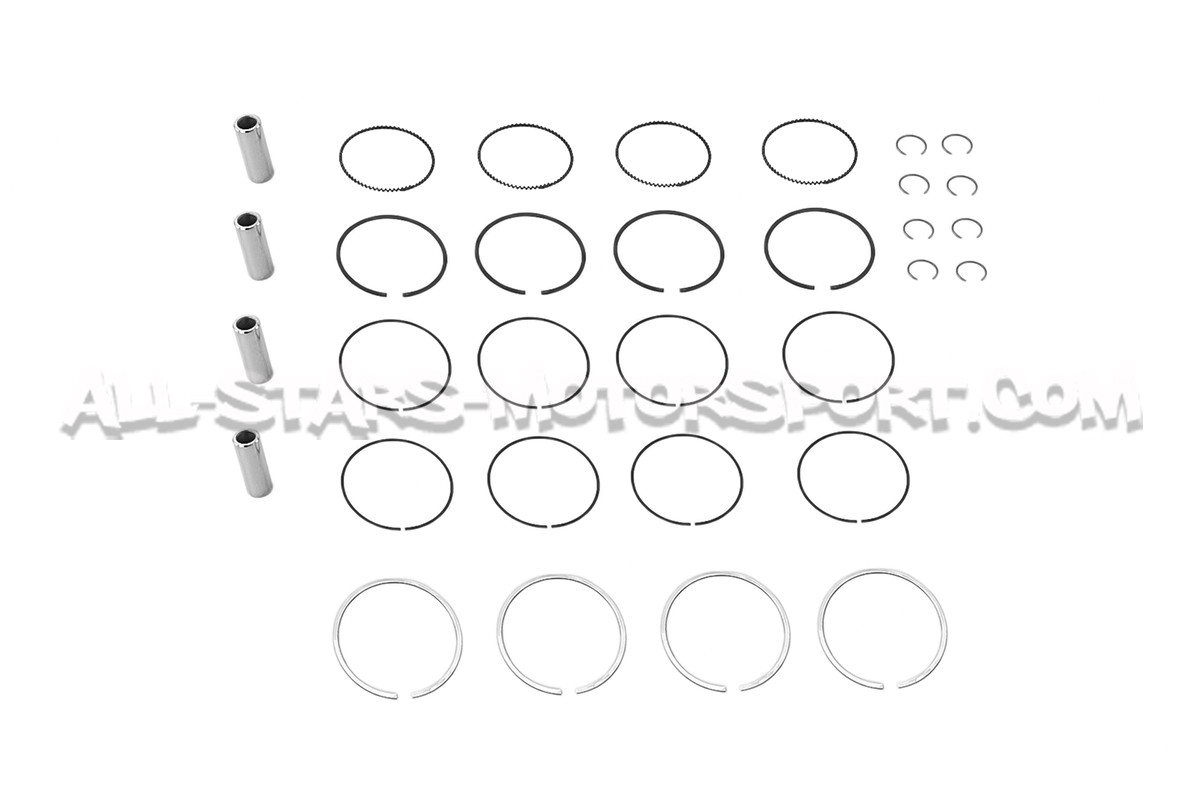

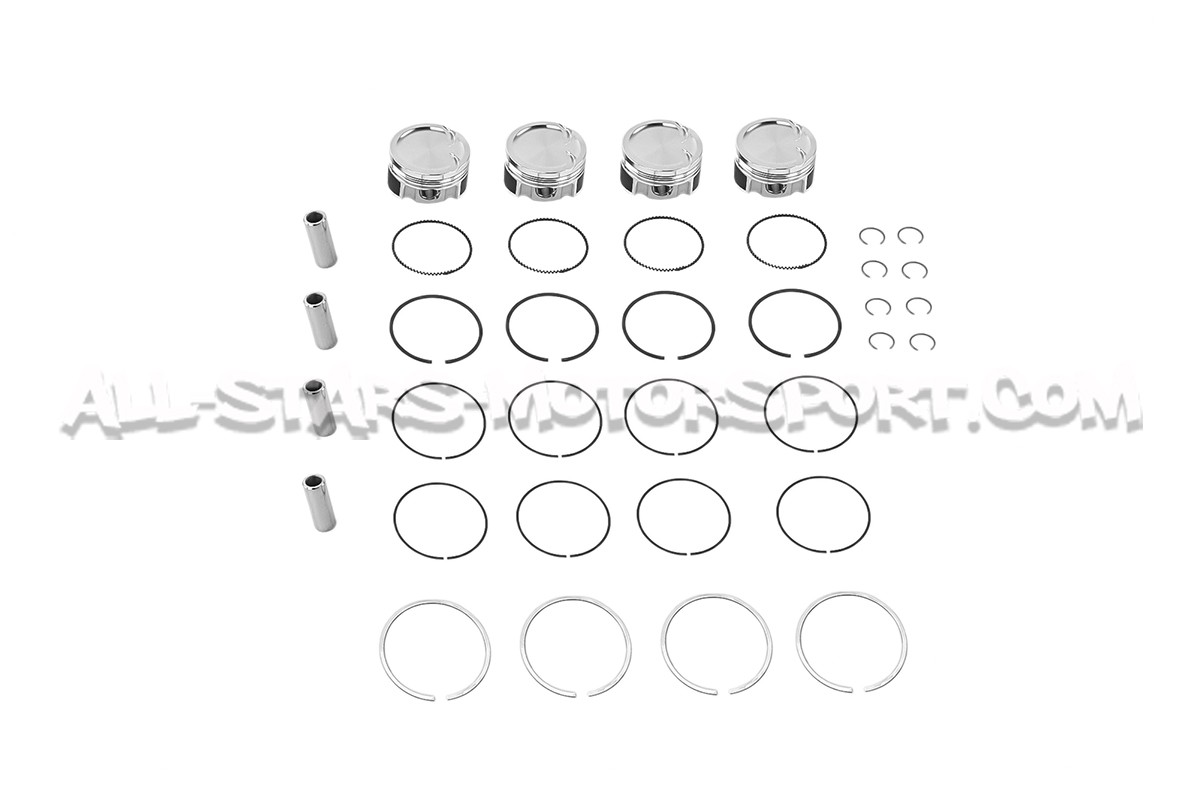

Proseal rings, locks and fitting included

Made in USA

- This product is compatible with all these cars -

Brand	Model	Type	Version
Audi	A3	8V / 8.5V - 12-20	2.0 TFSI - 190 / 220
Audi	A4	B9 - 15-...	2.0 TFSI - 252
Audi	A5	F5 - 16 -...	2.0 TFSI 252
Audi	S1	8X - 14-18	2.0 TFSI - 231
Audi	S3	8V / 8.5V - 13-20	2.0 TFSI - 300 / 310
Audi	SQ2	GA (1) - 16-20	2.0 TFSI - 300
Audi	TT	8S - 14-20	2.0 TFSI - 230
Audi	TT	8S - 14-20	TTS 2.0 TFSI - 310
Seat / Cupra	Leon	5F - 12-20	Cupra - 265/280/290/300/310
Seat / Cupra	Leon	5F - 12-20	Cupra 4 Drive - 300
Skoda	Octavia	5E - 13-20	vRS - 220 / 230 / 245
Volkswagen	Golf	MK7 - 13-17	GTI - 220 / 230
Volkswagen	Golf	MK7 - 13-17	GTI Clubsport - 265
Volkswagen	Golf	MK7 - 13-17	R - 300
Volkswagen	Golf	MK7 - 13-17	R - Estate / SW - 300
Volkswagen	Golf	Mk7.5 - 17-20	GTI - 230 / 245
Volkswagen	Golf	Mk7.5 - 17-20	GTI TCR - 290
Volkswagen	Golf	Mk7.5 - 17-20	R - 310
Volkswagen	Golf	Mk7.5 - 17-20	R - Estate / SW - 310
Volkswagen	Polo	AW - 17-...	GTI 200
...See more compatibilities Reduce...

Further information

Our technical specifications and compatibilities refer to the standard equipment of the vehicles mentioned, in case of doubt about the compatibility of a product, please contact our customer service to answer your questions.

No Instructions

Difficulty Level:

- This product is compatible with all these cars -

Brand	Model	Type	Version
Audi	A3	8V / 8.5V - 12-20	2.0 TFSI - 190 / 220
Audi	A4	B9 - 15-...	2.0 TFSI - 252
Audi	A5	F5 - 16 -...	2.0 TFSI 252
Audi	S1	8X - 14-18	2.0 TFSI - 231
Audi	S3	8V / 8.5V - 13-20	2.0 TFSI - 300 / 310
Audi	SQ2	GA (1) - 16-20	2.0 TFSI - 300
Audi	TT	8S - 14-20	2.0 TFSI - 230
Audi	TT	8S - 14-20	TTS 2.0 TFSI - 310
Seat / Cupra	Leon	5F - 12-20	Cupra - 265/280/290/300/310
Seat / Cupra	Leon	5F - 12-20	Cupra 4 Drive - 300
Skoda	Octavia	5E - 13-20	vRS - 220 / 230 / 245
Volkswagen	Golf	MK7 - 13-17	GTI - 220 / 230
Volkswagen	Golf	MK7 - 13-17	GTI Clubsport - 265
Volkswagen	Golf	MK7 - 13-17	R - 300
Volkswagen	Golf	MK7 - 13-17	R - Estate / SW - 300
Volkswagen	Golf	Mk7.5 - 17-20	GTI - 230 / 245
Volkswagen	Golf	Mk7.5 - 17-20	GTI TCR - 290
Volkswagen	Golf	Mk7.5 - 17-20	R - 310
Volkswagen	Golf	Mk7.5 - 17-20	R - Estate / SW - 310
Volkswagen	Polo	AW - 17-...	GTI 200
...See more compatibilities Reduce...

Shipping Options

Choose your state

No Instructions

Difficulty Level:

The JE Pistons Limited Warranty covers defects for 30 days after the original purchase by the end-user. It is not transferable and demands proper use; any failure voids the warranty. The warranty is exclusive, disclaiming all other warranties, and releases JE Pistons from additional obligations or liabilities. If a product is believed to be defective, the original buyer must initiate a specific return process. If covered, JE Pistons may repair, replace, or refund the product at their own discretion.
