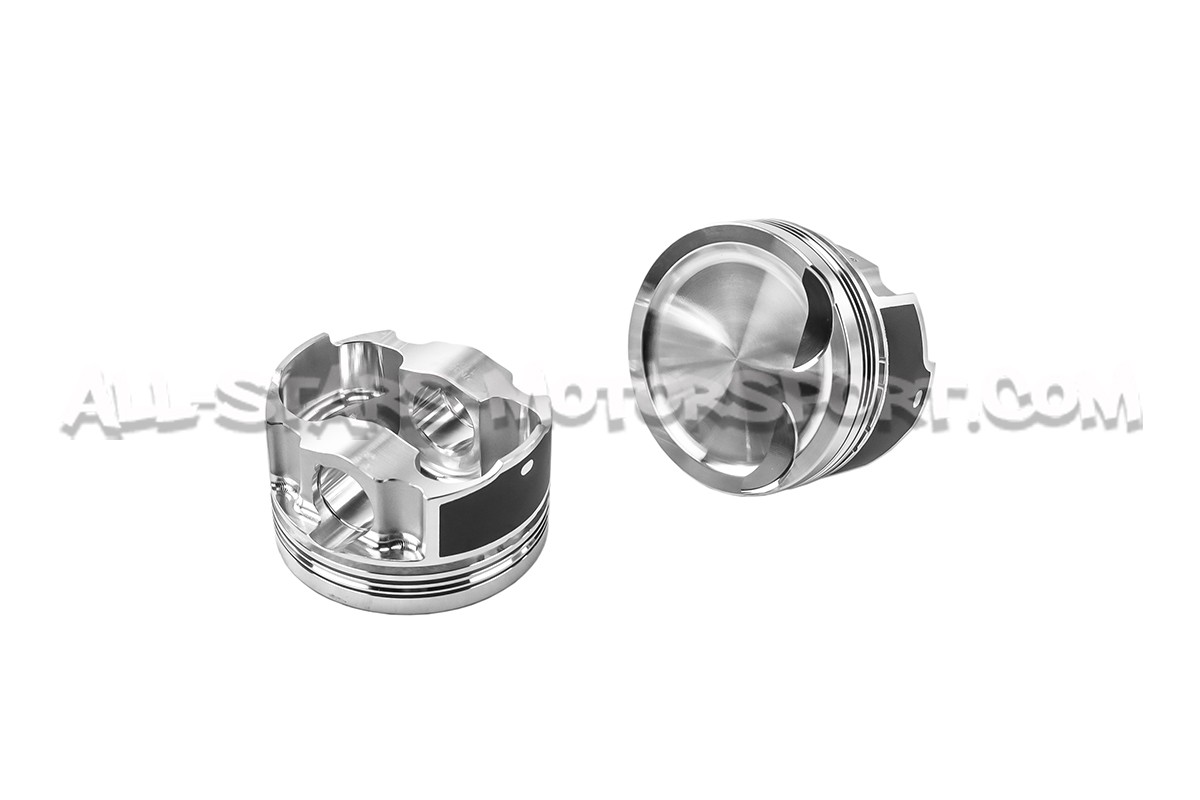

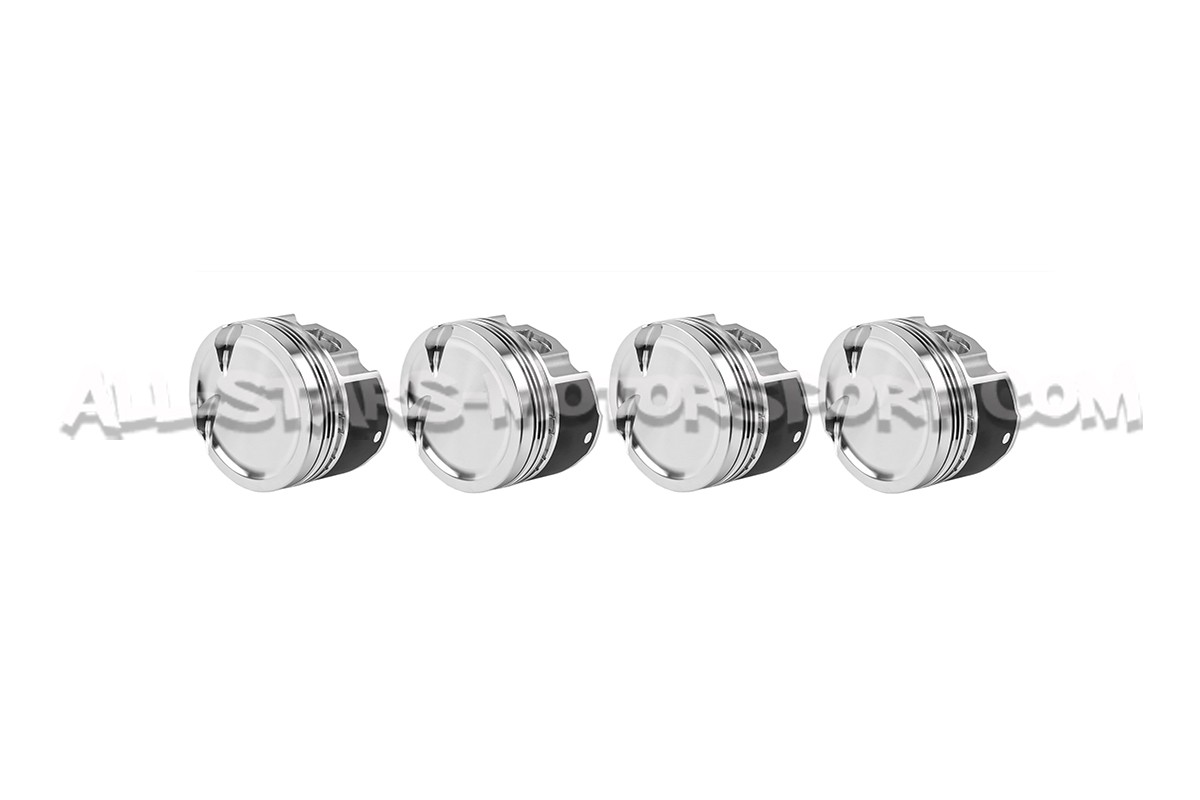

JE Forged Pistons for Abarth 595 / 695

Real Pictures JE Forged Pistons for Abarth 595 / 695

View larger

Real Pictures

JE Forged Pistons for Abarth 595 / 695

Reference:

EC Approved: NO

Shipped from the EU

1 081,57 €

757,10 € VAT incl.

Bore

Quantity

Made in the USA by JE Pistons from high strength 2618 aluminum, this 4 forged pistons kit for the 1.4T engines of the Fiat 500 / 595 Abarth exists in 2 different bores : 72.0mm (OEM) or 72.5 (machined engine). Coming with locks, rings and fitting kit (compatible with 18mm pin pistons), these pistons, designed to withstand extreme powers, offer an original compression ratio.

- Select your bore -

Direct bolt on (18mm axis)

4 piece kit

2618 forged (FSR) aluminum alloy

Pin : 18mm

Bore : 72.0mm (OEM) or 72.5mm (+0.5)

Compression ratio : 9.8:1

Proseal rings, locks and fitting included

Made in USA

- This product is compatible with all these cars -

Brand	Model	Type	Version
Abarth / Fiat	595 / 695	312 - 08-...	Abarth - 135 / 140 / 160
Abarth / Fiat	595 / 695	312 - 08-...	Abarth - 165 / 180 / 190
...See more compatibilities Reduce...

Further information

Our technical specifications and compatibilities refer to the standard equipment of the vehicles mentioned, in case of doubt about the compatibility of a product, please contact our customer service to answer your questions.

No Instructions

Difficulty Level:

- This product is compatible with all these cars -

Brand	Model	Type	Version
Abarth / Fiat	595 / 695	312 - 08-...	Abarth - 135 / 140 / 160
Abarth / Fiat	595 / 695	312 - 08-...	Abarth - 165 / 180 / 190
...See more compatibilities Reduce...

Shipping Options

Choose your state

No Instructions

Difficulty Level:

The JE Pistons Limited Warranty covers defects for 30 days after the original purchase by the end-user. It is not transferable and demands proper use; any failure voids the warranty. The warranty is exclusive, disclaiming all other warranties, and releases JE Pistons from additional obligations or liabilities. If a product is believed to be defective, the original buyer must initiate a specific return process. If covered, JE Pistons may repair, replace, or refund the product at their own discretion.
