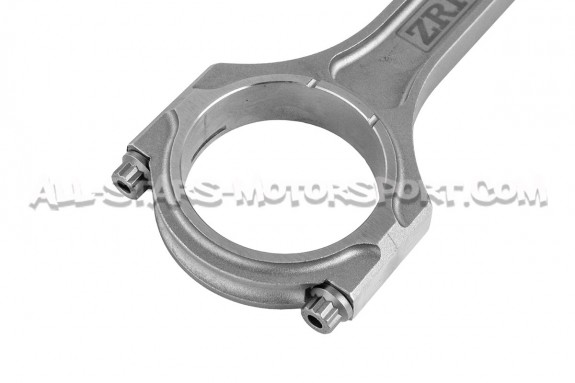

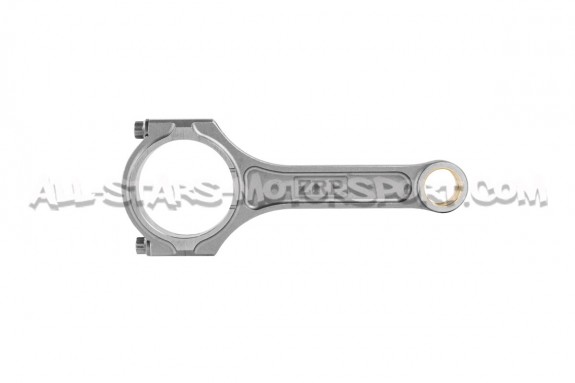

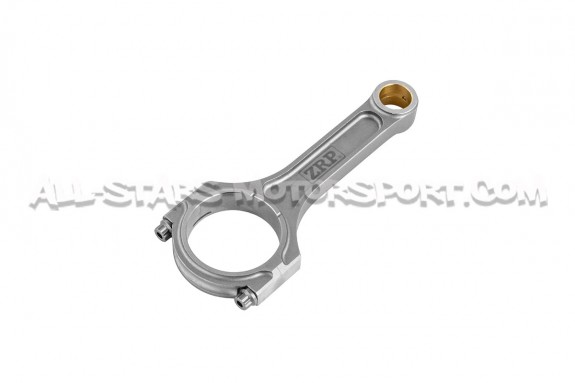

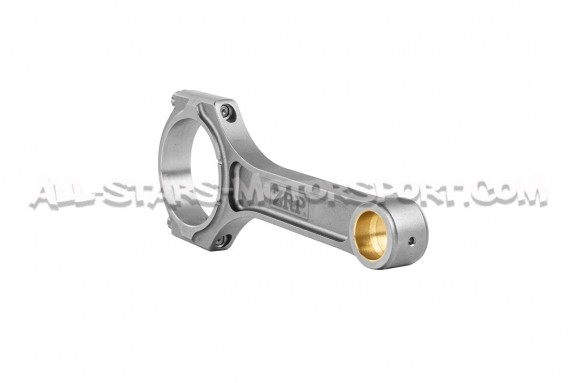

ZRP Forged Connecting Rods for Audi RS4 B9 and RS5 F5

Real Pictures ZRP Forged Connecting Rods for Audi RS4 B9 and RS5 F5

View larger

Real Pictures

ZRP Forged Connecting Rods for Audi RS4 B9 and RS5 F5

Reference: R-AUD-013-I

EC Approved: NO

Availability: More Details In stock

Shipped from the EU

1 039,35 €

831,48 € VAT incl.

Quantity

Made in Greece from high quality billet 4340 steel, these ZRP forged connecting rods (compatible with 22mm pin pistons) for the EA839 engines of the Audi RS4 B9 and RS5 F5 2.9 TFSI have an I-beam design with AMPCO 18 wrist pin bushings and ARP2000 bolts able to support over 1000hp !

Direct bolt on (22mm axis)

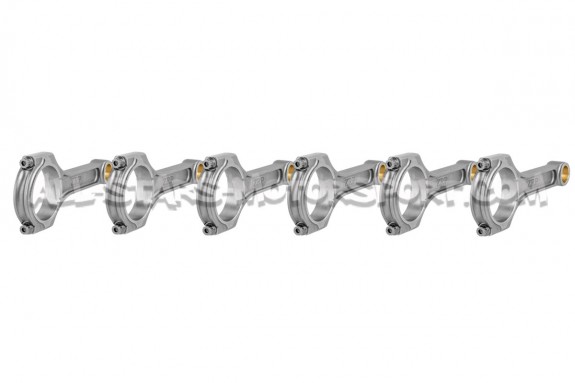

6 pieces kit

Billet 4340 steel I-beam design

Pin : 22mm

ARP 2000 rod bolts

Length 155mm - PE Width 20.05mm

Big end diameter: 58.80mm

Made in Greece

- Compatible only with forged pistons with 22mm axis pistons -

- Further information -

Our technical specifications and compatibilities refer to the standard equipment of the vehicles mentioned, in case of doubt about the compatibility of a product, please contact our customer service to answer your questions.

- See exclusions mentioned in the description -

Brand	Model	Type	Version
Audi	RS4	B9 - 17-...	2.9 TFSI - 450
Audi	RS5	F5 - 17-...	2.9TFSI - 450
...See more compatibilities Reduce...

Shipping Options

Choose your state

No Instructions

Difficulty Level:

The ZRP Limited Warranty covers defects for 30 days after the original purchase by the end-user. It is not transferable and demands proper use; any failure voids the warranty. The warranty is exclusive, disclaiming all other warranties, and releases ZRP from additional obligations or liabilities. If a product is believed to be defective, the original buyer must initiate a specific return process. If covered, ZRP may repair, replace, or refund the product at their own discretion.
