Direct replacement for the factory fuel pump assembly on the Nissan R35 GT-R, this Deatschwerks module includes three DW430c pumps, each capable of delivering 465 liters per hour - 200% more flow than the OEM units. Designed to support up to 1700hp, this kit is compatible with all fuel types and features a billet top hat allowing the installation of an electronic controller, 10AN feed / 8AN return ports, and an anti-slosh internal structure. Retaining all OEM sensors and functions, this module requires an upgrade to the electrical harness (factory setup uses only two pumps) or the installation of the optional R35-FPHWK-HD harness for true plug-and-play fitment.
-
Direct-fit*
Triple DW430c pumps (1400L/h total flow)
200% flow increase over OEM module
Rated up to 1700hp
Anti-slosh bucket system
10AN ORB feed and 8AN ORB return ports
100% E85 compatible
OEM sensors and functions retained
Installation hardware included
Made in USA
– Note –
*Electrical harness modification required (see optional R35-FPHWK-HD harness)
| Brand | Model | Type | Version |
|---|---|---|---|
| Nissan | GTR | R35 - 08-24 | 3.8- 485/530/550/570/600 |
Direct replacement for the factory fuel pump assembly on the Nissan R35 GT-R, this Deatschwerks module includes three DW430c pumps, each capable of delivering 465 liters per hour - 200% more flow than the OEM units. Designed to support up to 1700hp, this kit is compatible with all fuel types and features a billet top hat allowing the installation of an electronic controller, 10AN feed / 8AN return ports, and an anti-slosh internal structure. Retaining all OEM sensors and functions, this module requires an upgrade to the electrical harness (factory setup uses only two pumps) or the installation of the optional R35-FPHWK-HD harness for true plug-and-play fitment.
-
Direct-fit*
Triple DW430c pumps (1400L/h total flow)
200% flow increase over OEM module
Rated up to 1700hp
Anti-slosh bucket system
10AN ORB feed and 8AN ORB return ports
100% E85 compatible
OEM sensors and functions retained
Installation hardware included
Made in USA
– Note –
*Electrical harness modification required (see optional R35-FPHWK-HD harness)
| Brand | Model | Type | Version |
|---|---|---|---|
| - Except special mention indicated on the product description - | |||
| Nissan | GTR | R35 - 08-24 | 3.8- 485/530/550/570/600 |
- Further information -
Our technical specifications and compatibilities refer to the standard equipment of the vehicles mentioned, in case of doubt about the compatibility of a product, please contact our customer service to answer your questions.
Content protected by copyright © 2026 - All rights reserved
DeatschWerks offers a 36-month limited warranty, covering free repair or replacement of products not meeting specifications. The warranty excludes labor costs and consequential damages. Non-transferable, it applies solely to the original purchaser for the intended vehicle application.
Nissan R35 GTR HKS Super SQV4 Blow Off Valves With Intake Pipes

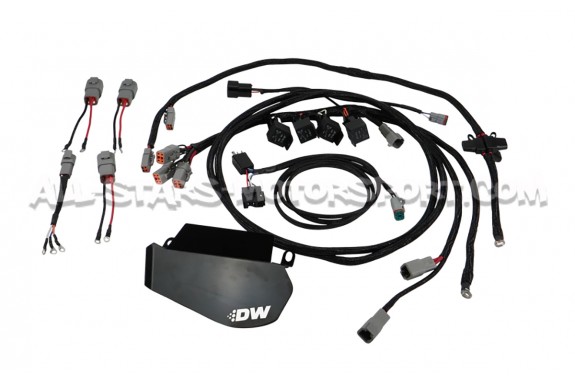

Nissan R35 GTR Triple Fuel Pumps Deatschwerks Harness Kit
