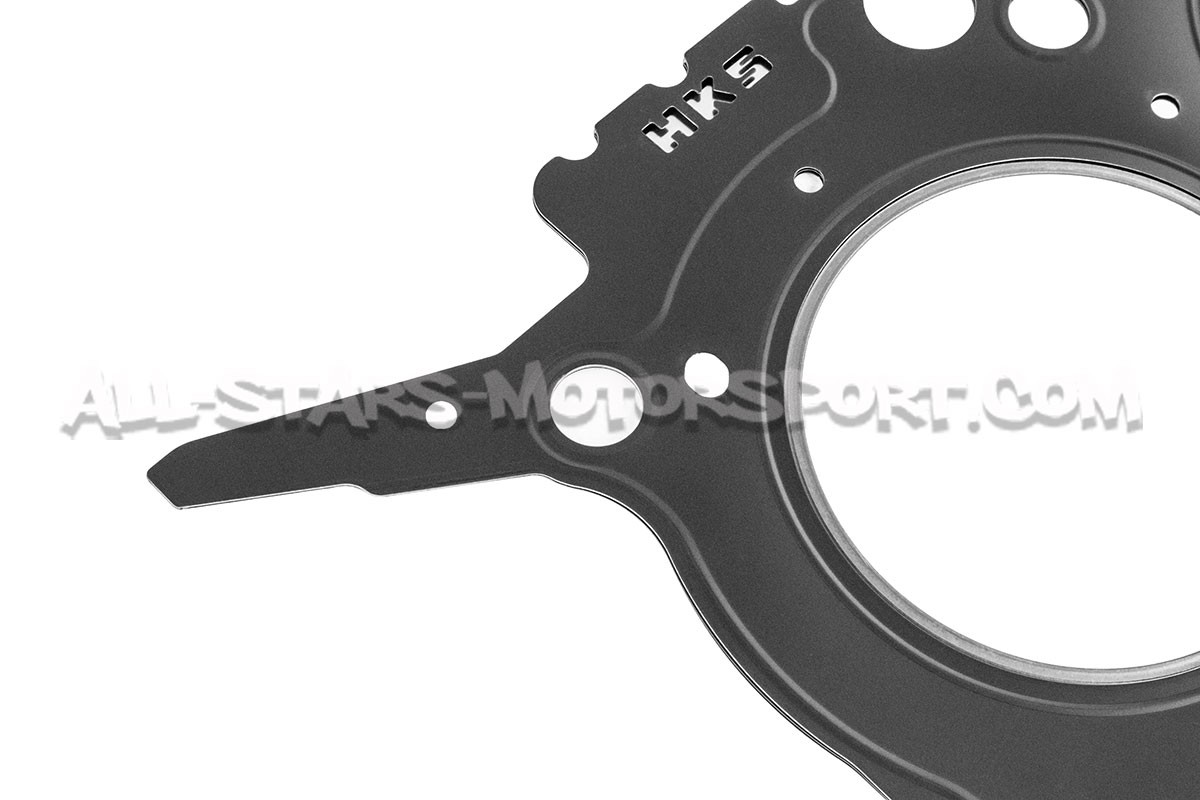

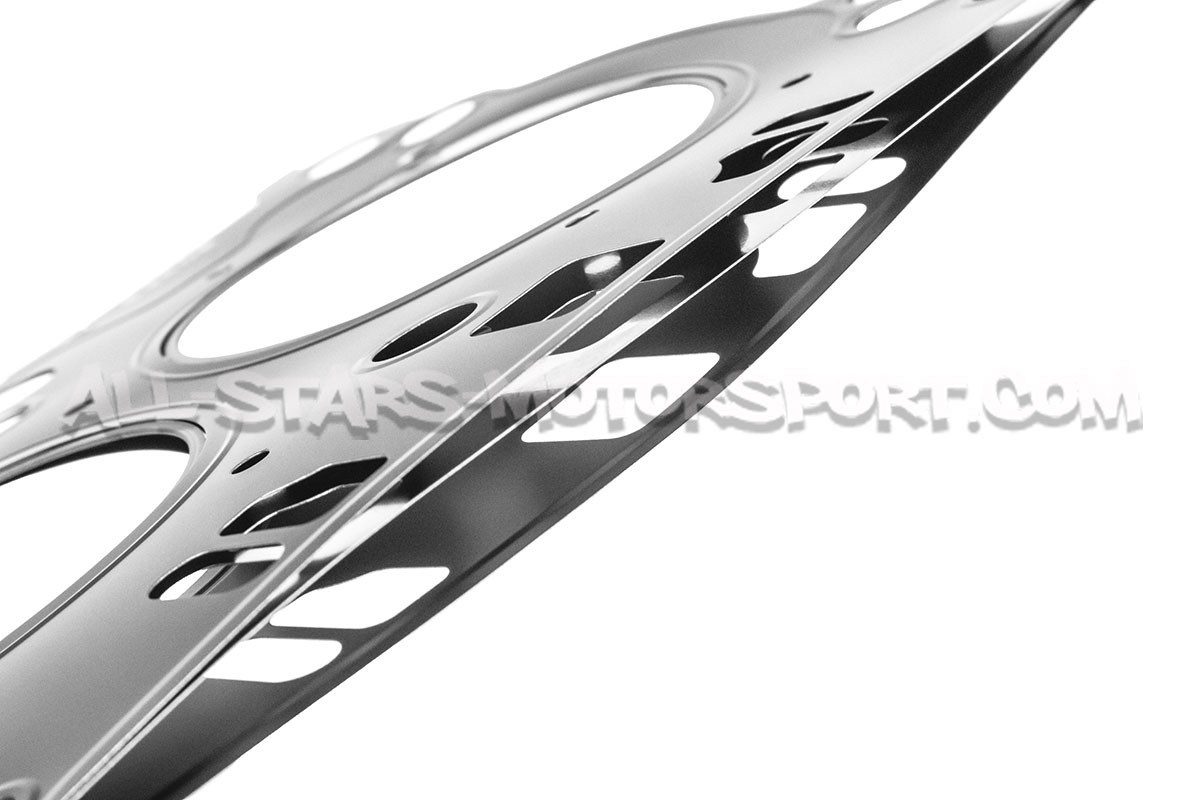

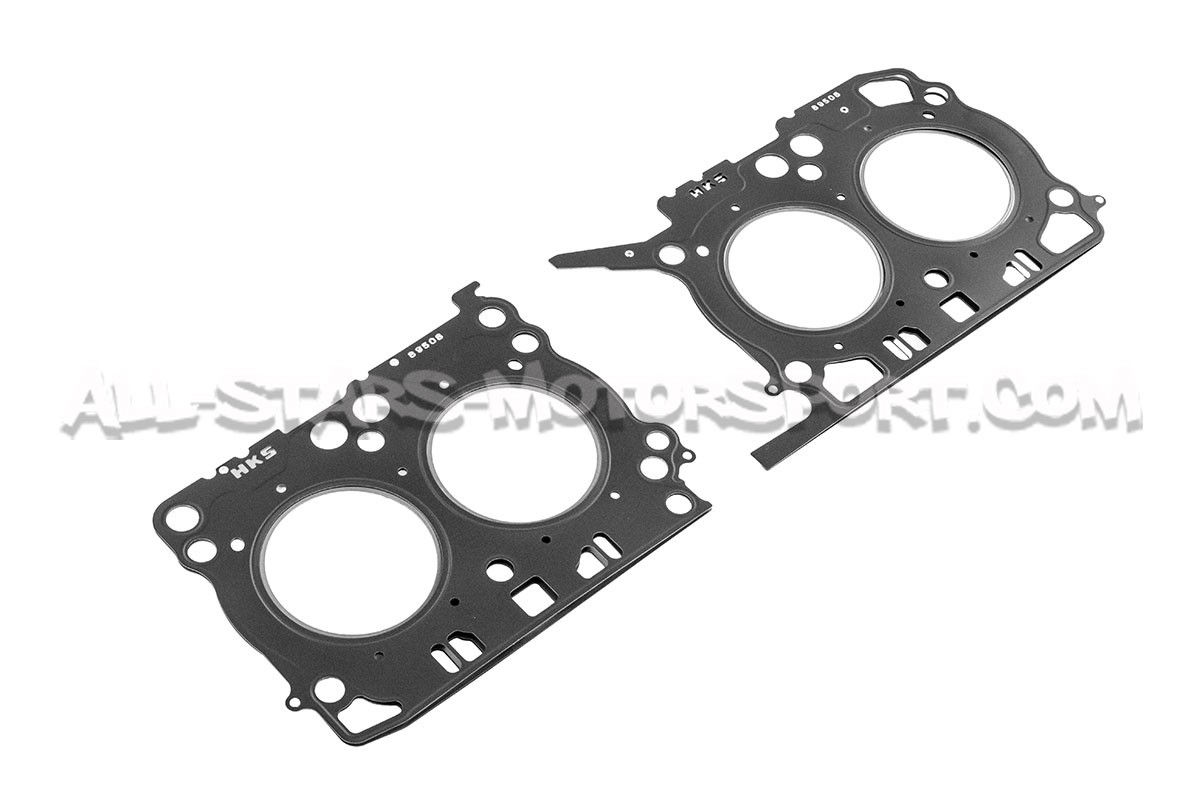

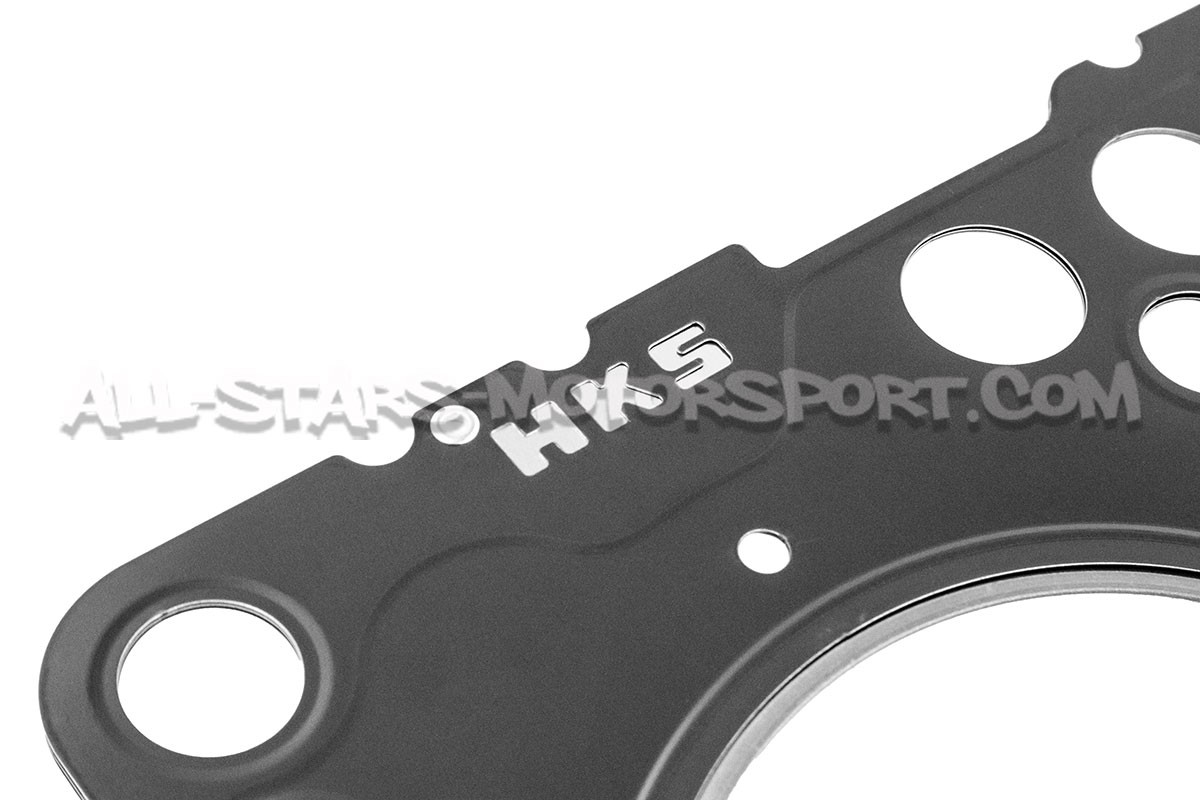

This HKS reinforced head gasket kit, intended for the FA20 engines fitted to the Toyota GT86 and Subaru BRZ, is available in 3 different versions, to perfectly suit any type of configuration. The first version with a thickness of 0.5mm is intended for an naturally aspired engine, the second with a thickness of 0.7mm is designed for mounting on engines equipped with supercharger and finally the third version with a thickness of 0.8mm and a particular architecture is intended for turbo conversions.
- Select your version -
Direct mounting

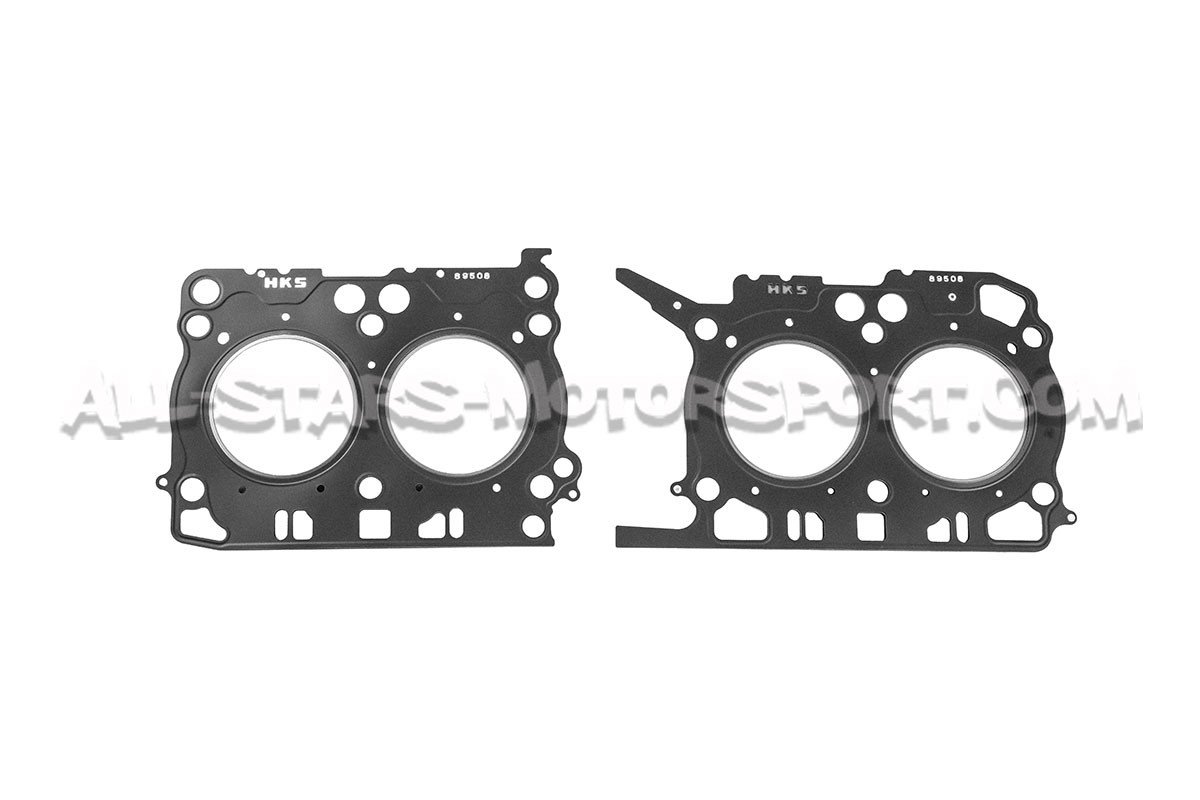

Two-piece kit (right/left)
Thickness: 0.5mm (NA), 0.7mm (supercharger) or 0.8mm (turbo)
Compression ratio: NA 12.6 / Supercharger 12.4 / Turbo 11.8 (10.8 with low comp pistons)
Grommet structure (turbo) or stopper structure (NA and supercharger)
Bore: 89.5mm
Made in Japan
| Brand | Model | Type | Version |
|---|---|---|---|
| Subaru | BRZ | ZC6 - 12-... | 2.0 - 200 |
| Toyota | GT86 | ZN6 - 12-... | 2.0-200 |
No Instructions
Difficulty Level:
| Brand | Model | Type | Version |
|---|---|---|---|
| Subaru | BRZ | ZC6 - 12-... | 2.0 - 200 |
| Toyota | GT86 | ZN6 - 12-... | 2.0-200 |
No Instructions
Difficulty Level:
HKS products come with a 1 year limited warranty for material and manufacturing defects applicable from the date of delivery. Note that warranty does not cover modified, misused or not correctly fitted products.
