Subaru BRZ / Toyota GT86 HKS Head Gaskets (NA, Turbo or SC)
Reference: 23001-AT002
201.88 €
VAT incl.
Secure CheckoutSSL encrypted & safe payment
Authorized DealerOfficial brand distributor
Expert SupportSpecialist advice & fast response
Easy Returns15-day return policy
Buy now, Pay later
For purchases above €50 and below €6,000

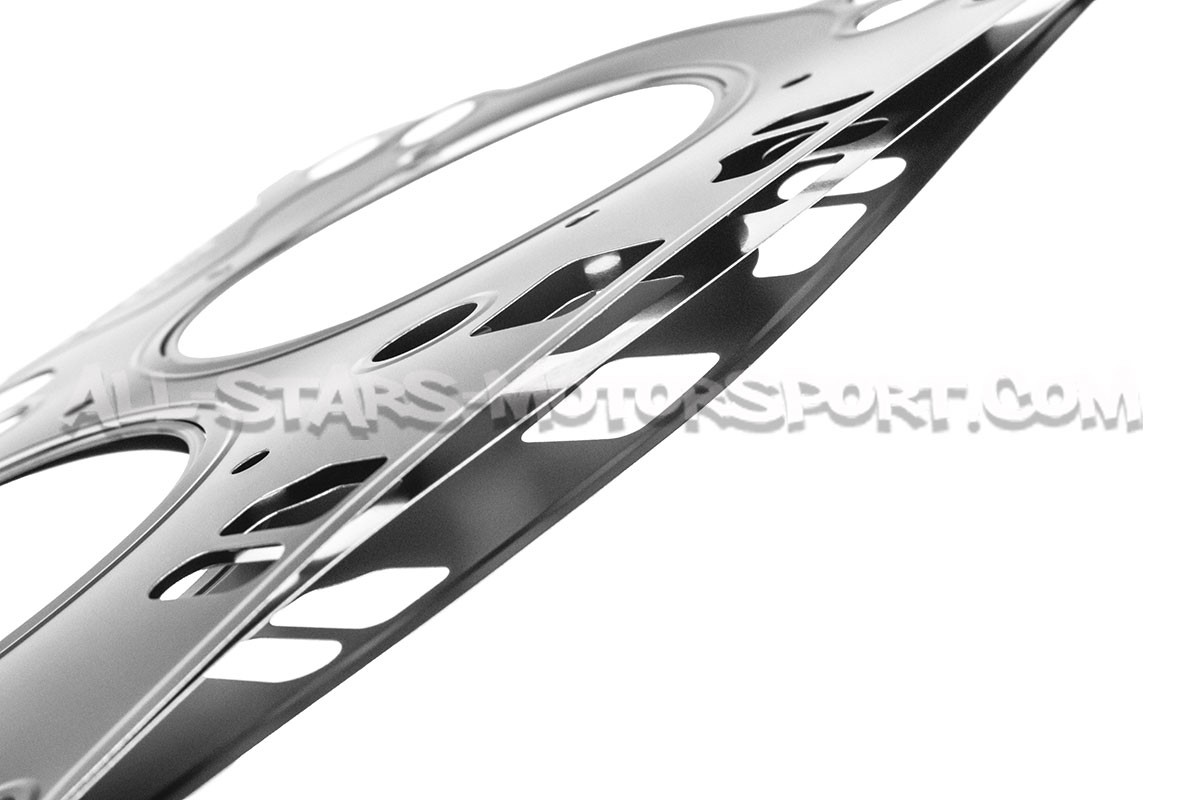

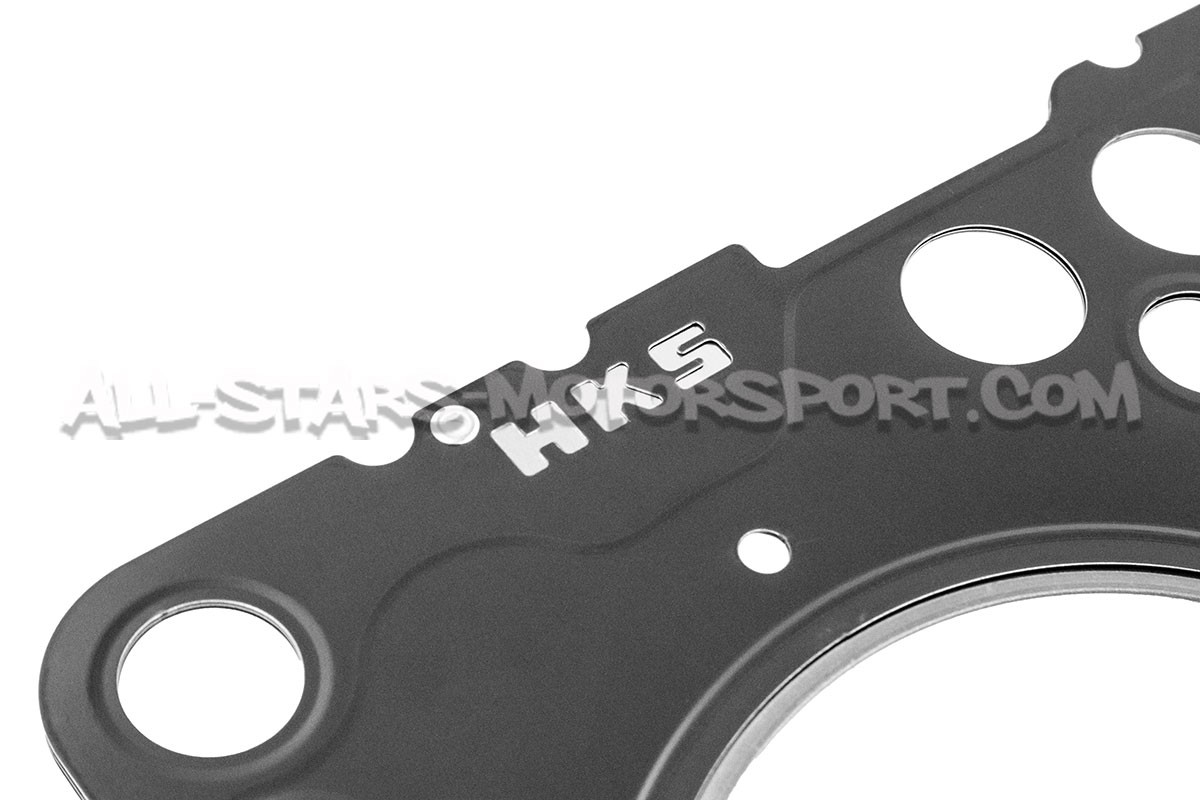

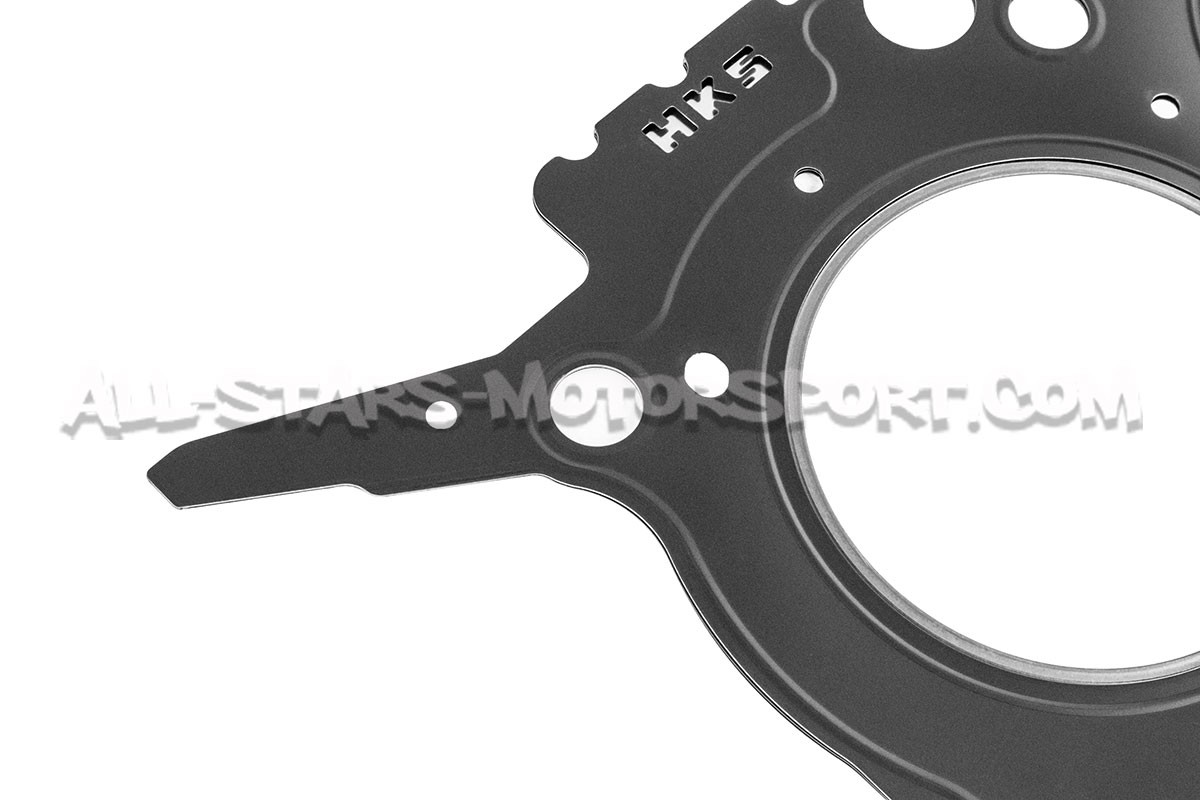

This HKS reinforced head gasket kit, intended for the FA20 engines fitted to the Toyota GT86 and Subaru BRZ, is available in 3 different versions, to perfectly suit any type of configuration. The first version with a thickness of 0.5mm is intended for an naturally aspired engine, the second with a thickness of 0.7mm is designed for mounting on engines equipped with supercharger and finally the third version with a thickness of 0.8mm and a particular architecture is intended for turbo conversions.
- Select your version -
Direct mounting

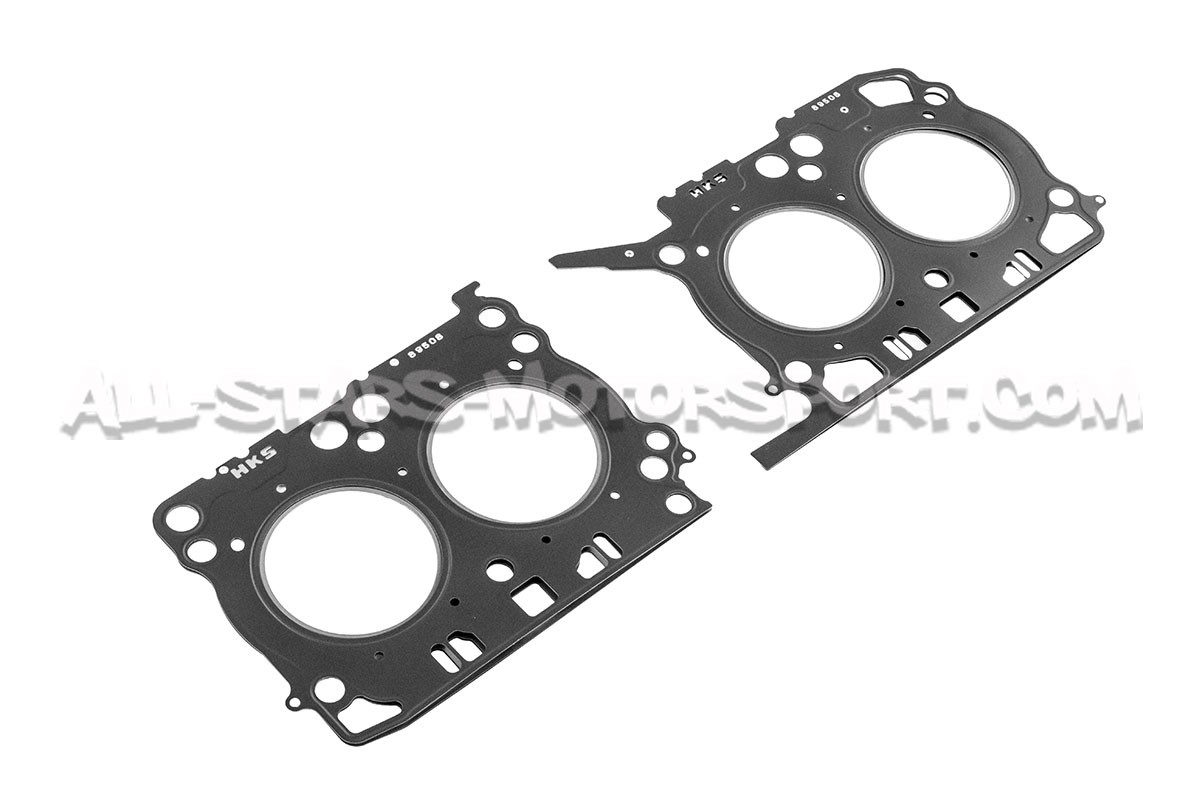

Two-piece kit (right/left)
Thickness: 0.5mm (NA), 0.7mm (supercharger) or 0.8mm (turbo)
Compression ratio: NA 12.6 / Supercharger 12.4 / Turbo 11.8 (10.8 with low comp pistons)
Grommet structure (turbo) or stopper structure (NA and supercharger)
This HKS reinforced head gasket kit, intended for the FA20 engines fitted to the Toyota GT86 and Subaru BRZ, is available in 3 different versions, to perfectly suit any type of configuration. The first version with a thickness of 0.5mm is intended for an naturally aspired engine, the second with a thickness of 0.7mm is designed for mounting on engines equipped with supercharger and finally the third version with a thickness of 0.8mm and a particular architecture is intended for turbo conversions.
- Select your version -
Direct mounting
Two-piece kit (right/left)
Thickness: 0.5mm (NA), 0.7mm (supercharger) or 0.8mm (turbo)
Compression ratio: NA 12.6 / Supercharger 12.4 / Turbo 11.8 (10.8 with low comp pistons)
Grommet structure (turbo) or stopper structure (NA and supercharger)
Bore: 89.5mm
Made in Japan
Compatible with the following vehicles
Except specifications in the description
Brand
Model
Type
Version
Subaru
BRZ
ZC6 - 12-20
2.0 - 200
Toyota
GT86
ZN6 - 12-21
2.0 - 200
- Further information -
Our technical specifications and compatibilities refer to the standard equipment of the vehicles mentioned, in case of doubt about the compatibility of a product, please contact our customer service to answer your questions.
HKS products come with a 1 year limited warranty for material and manufacturing defects applicable from the date of delivery. Note that warranty does not cover modified, misused or not correctly fitted products.
