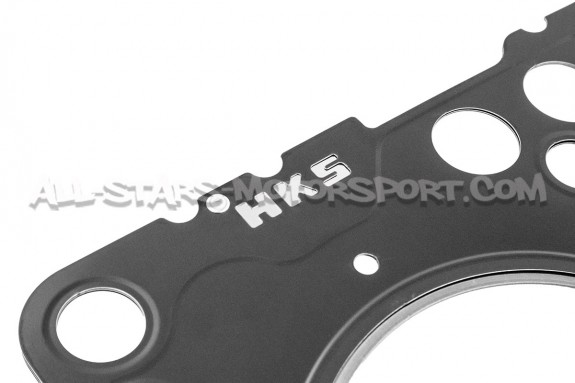

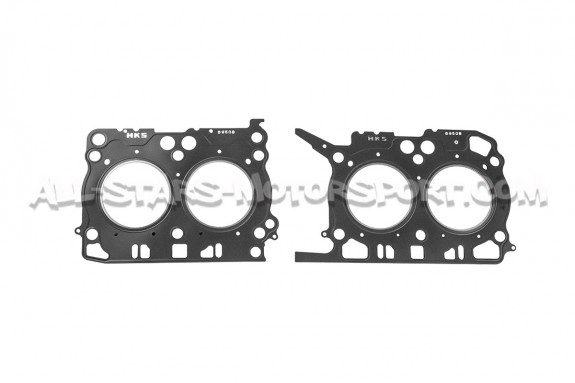

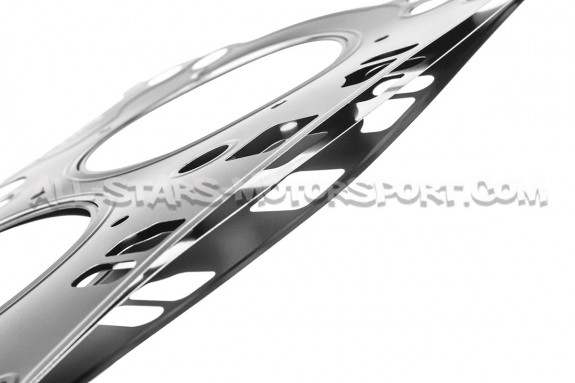

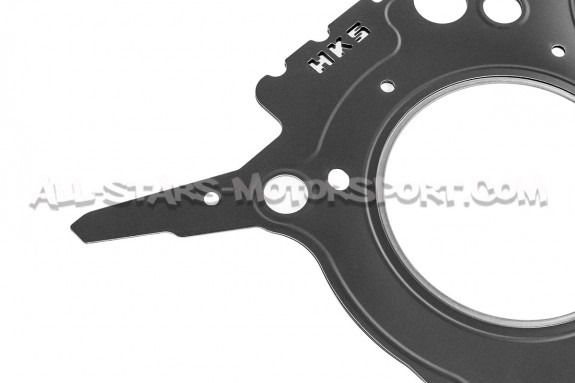

This HKS reinforced head gasket kit, intended for the FA20 engines fitted to the Toyota GT86 and Subaru BRZ, is available in 3 different versions, to perfectly suit any type of configuration. The first version with a thickness of 0.5mm is intended for an naturally aspired engine, the second with a thickness of 0.7mm is designed for mounting on engines equipped with supercharger and finally the third version with a thickness of 0.8mm and a particular architecture is intended for turbo conversions.
- Select your version -
Direct mounting
Two-piece kit (right/left)
Thickness: 0.5mm (NA), 0.7mm (supercharger) or 0.8mm (turbo)
Compression ratio: NA 12.6 / Supercharger 12.4 / Turbo 11.8 (10.8 with low comp pistons)
Grommet structure (turbo) or stopper structure (NA and supercharger)
Bore: 89.5mm
Made in Japan
- This product is compatible with all these cars -
This HKS reinforced head gasket kit, intended for the FA20 engines fitted to the Toyota GT86 and Subaru BRZ, is available in 3 different versions, to perfectly suit any type of configuration. The first version with a thickness of 0.5mm is intended for an naturally aspired engine, the second with a thickness of 0.7mm is designed for mounting on engines equipped with supercharger and finally the third version with a thickness of 0.8mm and a particular architecture is intended for turbo conversions.
- Select your version -
Direct mounting
Two-piece kit (right/left)
Thickness: 0.5mm (NA), 0.7mm (supercharger) or 0.8mm (turbo)
Compression ratio: NA 12.6 / Supercharger 12.4 / Turbo 11.8 (10.8 with low comp pistons)
Grommet structure (turbo) or stopper structure (NA and supercharger)
Bore: 89.5mm
Made in Japan
- This product is compatible with all these cars -
Brand
Model
Type
Version
- Except special mention indicated on the product description -
Subaru
BRZ
ZC6 - 12-...
2.0 - 200
Toyota
GT86
ZN6 - 12-...
2.0-200
- Further information -
Our technical specifications and compatibilities refer to the standard equipment of the vehicles mentioned, in case of doubt about the compatibility of a product, please contact our customer service to answer your questions.
