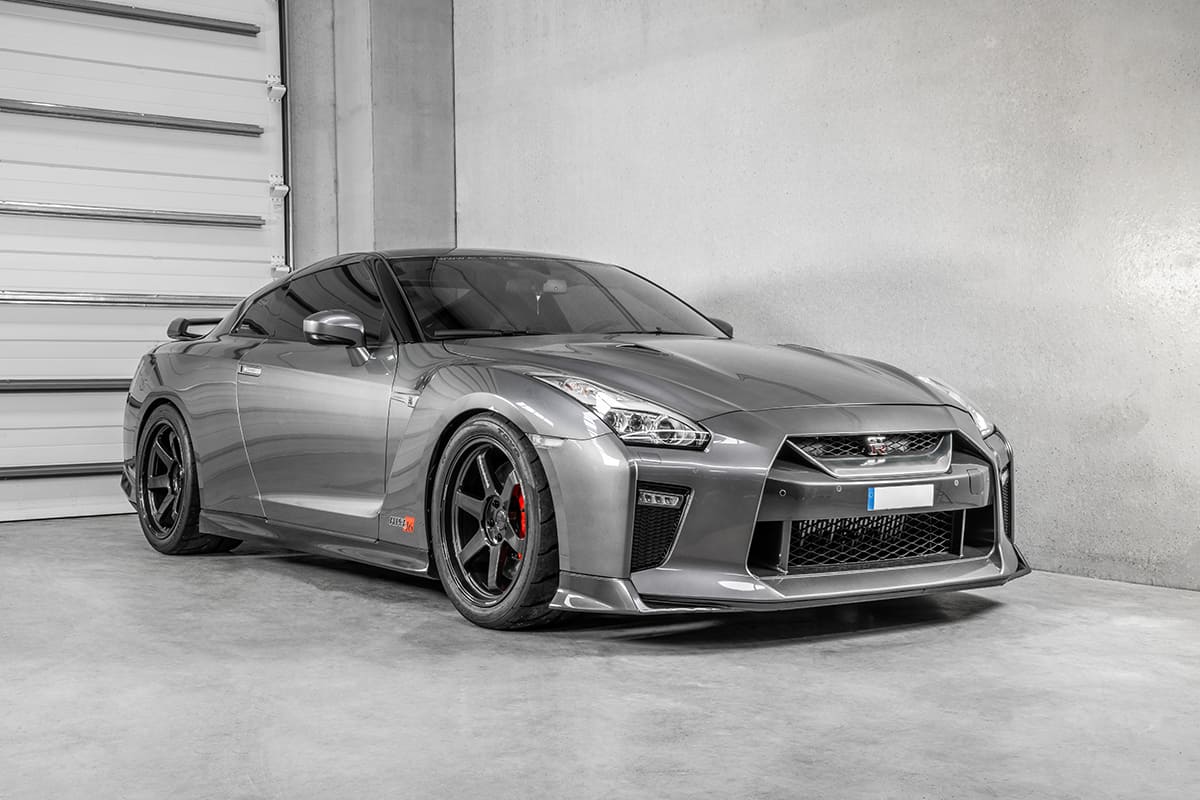

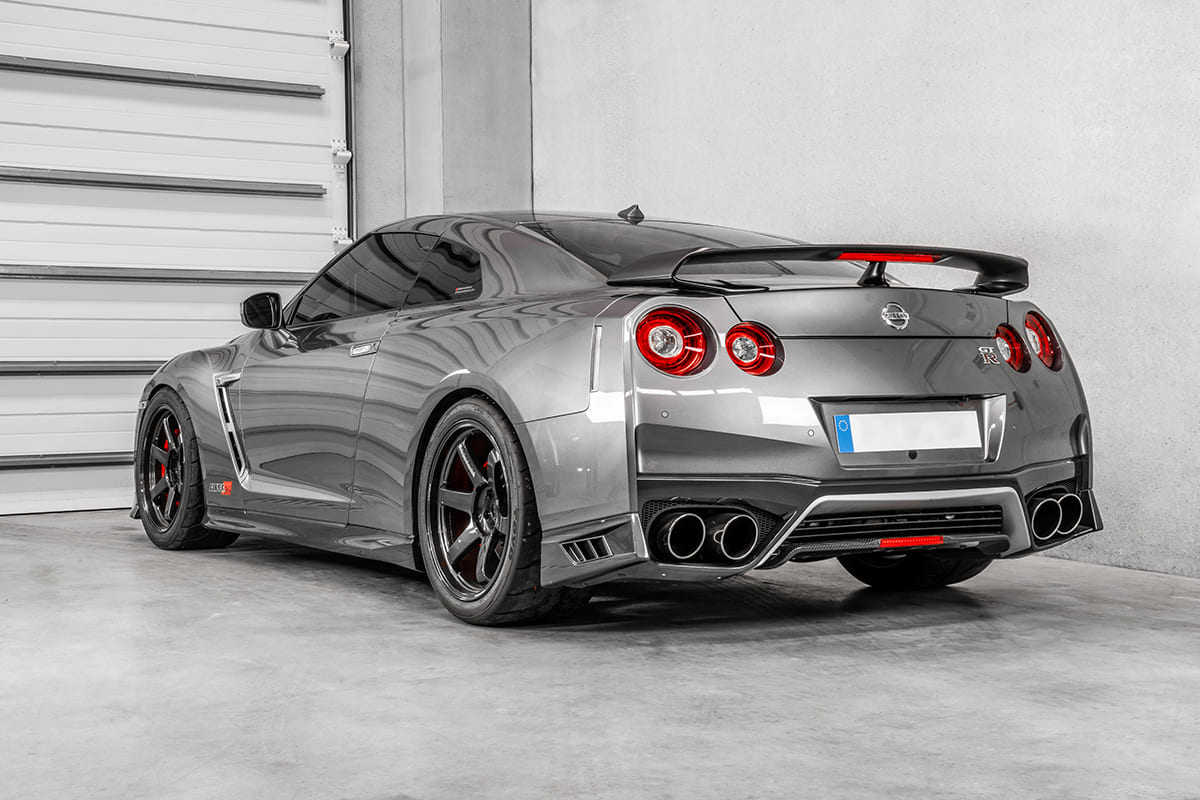

Nissan R35 GTR 2018 - 3.8T 570

Stage 4 - 1438 hp / 1531 nm (E85)

Setup budget : 160.000 €

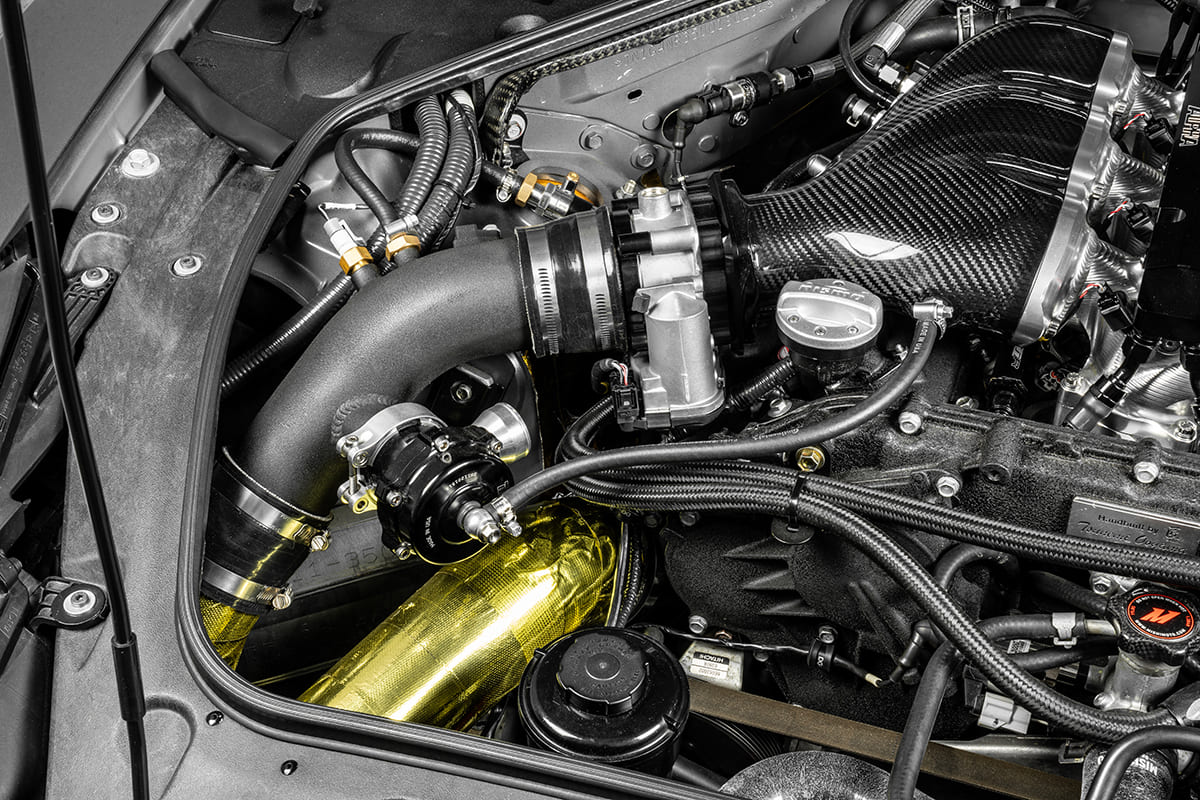

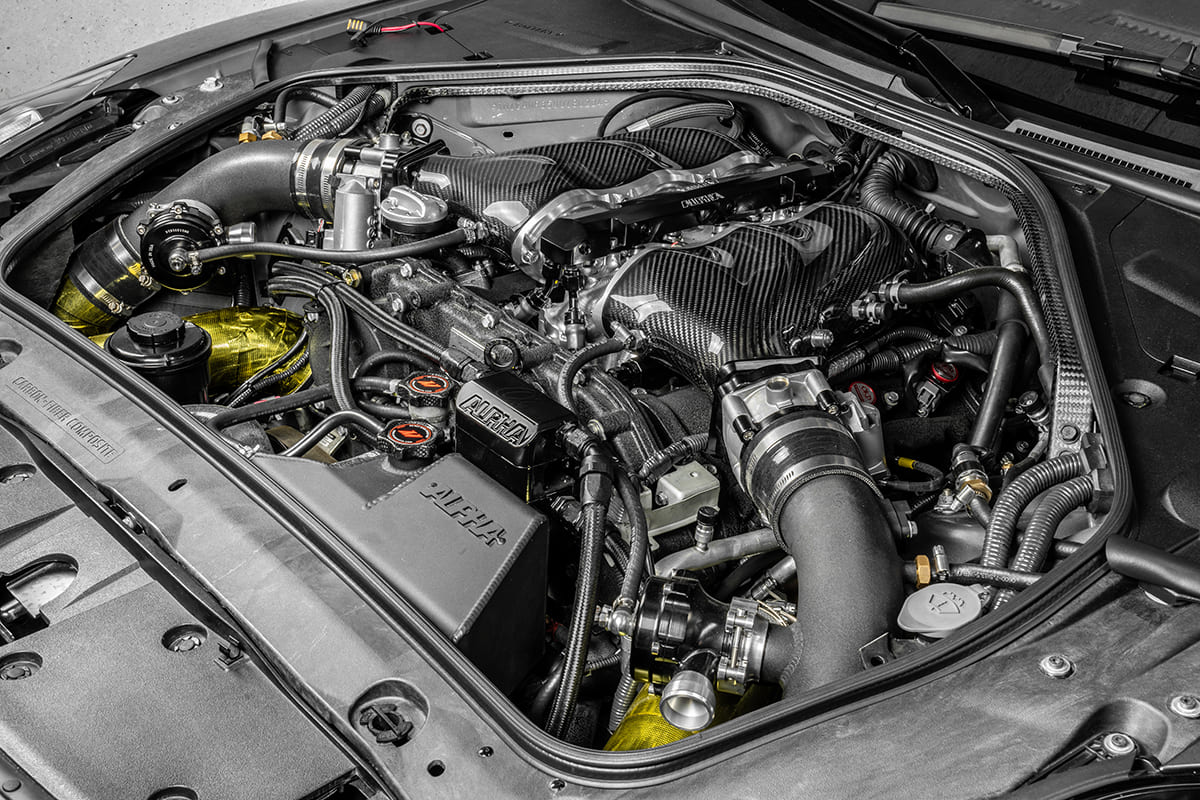

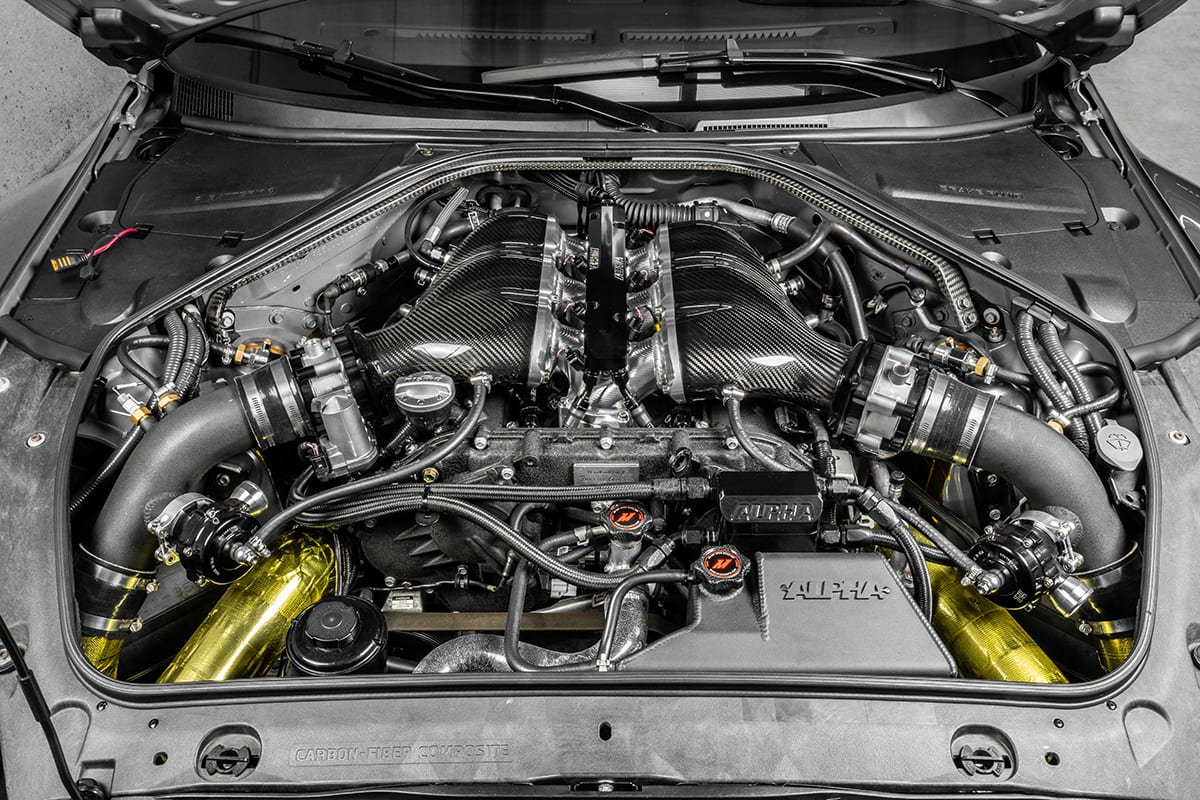

Engine

• ETS GTX3584R Gen.2 turbo kit
• ETS 3.5” turbo inlets
• AMS Performance carbon fiber intake manifold
• ETS 3.5” speed density intakes
• T1Race throttle bodies
• AMS Performance race intercooler ^{( Link )}
• AMS Performance upper intercooler piping ^{( Link )}
• Tial Q50 blow off valves
• Tial 44mm wastegates
• AMS X flywheel w/ T1Race bolts ^{( Link )}
• King Bearing rods bearings
• King Bearing main bearings
• ETS Bryant stroker crankshaft 4.1
• ETS/Carillo steel rods
• ETS/Mahle pistons
• ARP main studs kit ^{( Link )}
• ARP head studs kit
• HKS head gaskets
• ETS ported heads
• AMS Performance Alpha camshafts ^{( Link )}
• Ferrea +1mm valves ^{( Link )}
• Ferrea dual springs kit ^{( Link )}
• ATI super damper pulley
• HKS timing belt
• AAA race oil pump
• AMS Performance air / oil separator ^{( Link )}
• AMS Performance engine oil pan ^{( Link )}
• AMS Performance oil cooler ^{( Link )}
• AMS Performance race oil filter kit ^{( Link )}
• AMS Performance coolant tank ^{( Link )}
• Mishimoto magnetic oil drain plug ^{( Link )}
• Mishimoto radiator ^{( Link )}
• Mishimoto silicone radiator hoses ^{( Link )}
• Mishimoto racing thermostat ^{( Link )}
• Alpha Competition gold reflective tape
• ETS exhaust manifolds
• ETS 3.5” decat downpipes
• ETS 4” Y pipe
• ETS 4" race catback
• Thermotec exhaust wrap band
• AMS Performance main fuel rails ^{( Link )}
• AMS Performance secondary fuel rail
• T1Race 12 injectors harness kit
• T1Race flex fuel kit
• Injectors Dynamics 1300cc main injectors
• Injectors Dynamics 1700cc secondary injectors
• AMS Performance Omega twin brushless fuel pumps ^{( Link )}
• Goodridge PTFE fuel lines

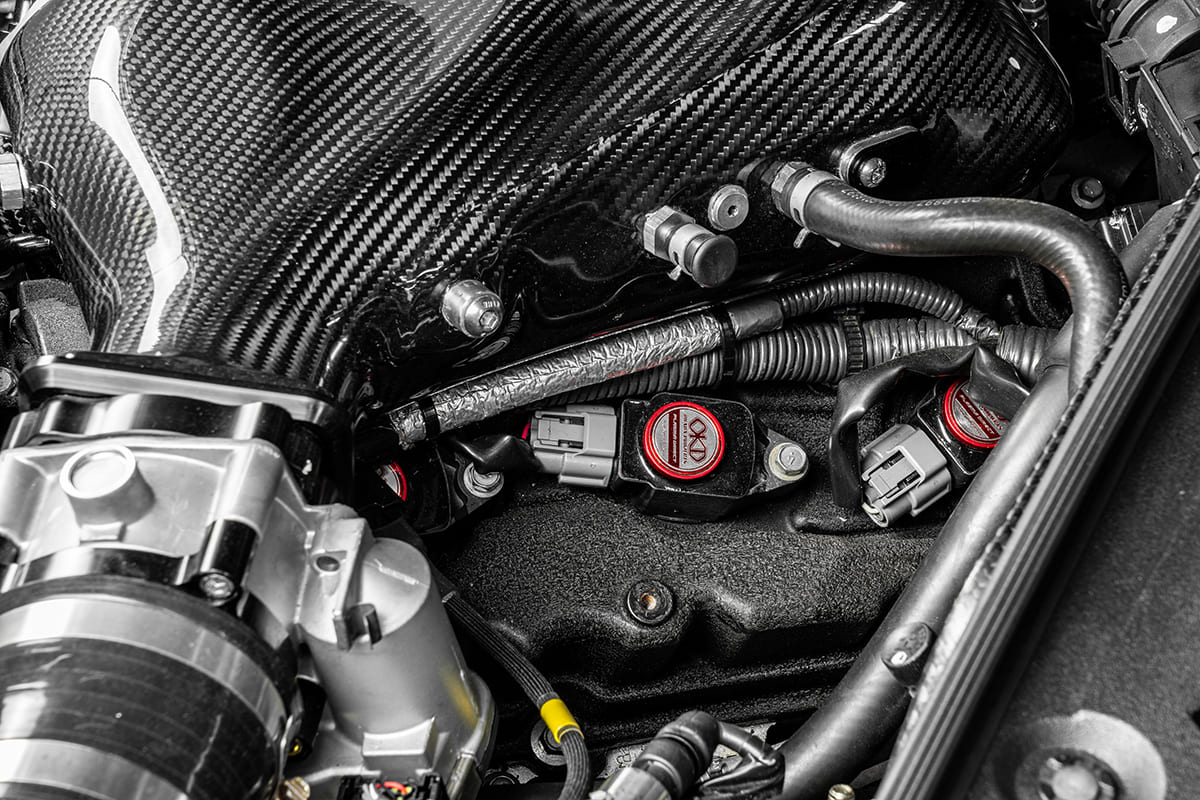

• Okada Projects plasma ignition coils ^{( Link )}
• NGK Racing grade 9 sparkplugs
• Dodson ProMax 12/12 clutch
• Dodson Extreme gear set, synchro and forks
• Dodson 1-6 trust bearing circlips
• Dodson gear selector, shafts and rings 1-6
• Dodson extreme output shaft kit
• Dodson billet midplate
• Dodson extreme FWD output shaft
• Dodson FWD clutch
• Sheptrans trust plate
• Dodson transmission filter
• AMS Performance transmission oil pan ^{( Link )}
• T1Race upper and lower transmission brace set
• Sheptrans front differential housing
• Wavetrac front differential
• DSS front and rear driveshafts
• Wavetrac rear differential
• T1Race rear differential cover
• Whiteline rear differential mount bushings - Soportes de diferencial Whiteline ^{( Link )}
• DSS carbon fiber shaft
• DSS FWD shaft upgrade
• Dodson front and rear transmission mounts
• Antigravity battery
• T1Race boost control solenoids
• AMS Performance 4 bars MAP sensor ^{( Link )}
• Motec M150 ECU with 6 sensors
• ECU and TCU tuned by Rob Tuned

Chassis

• HKS Hypermax drag coilovers
• AMS Race X solid engine mount ^{( Link )}
• Rays VolkRacing TE37 Saga TA 20x10 & 20x12 ^{( Link )}
• T1R magnesium lugs nut
• Toyo R888 285/35 & 325/30 tires

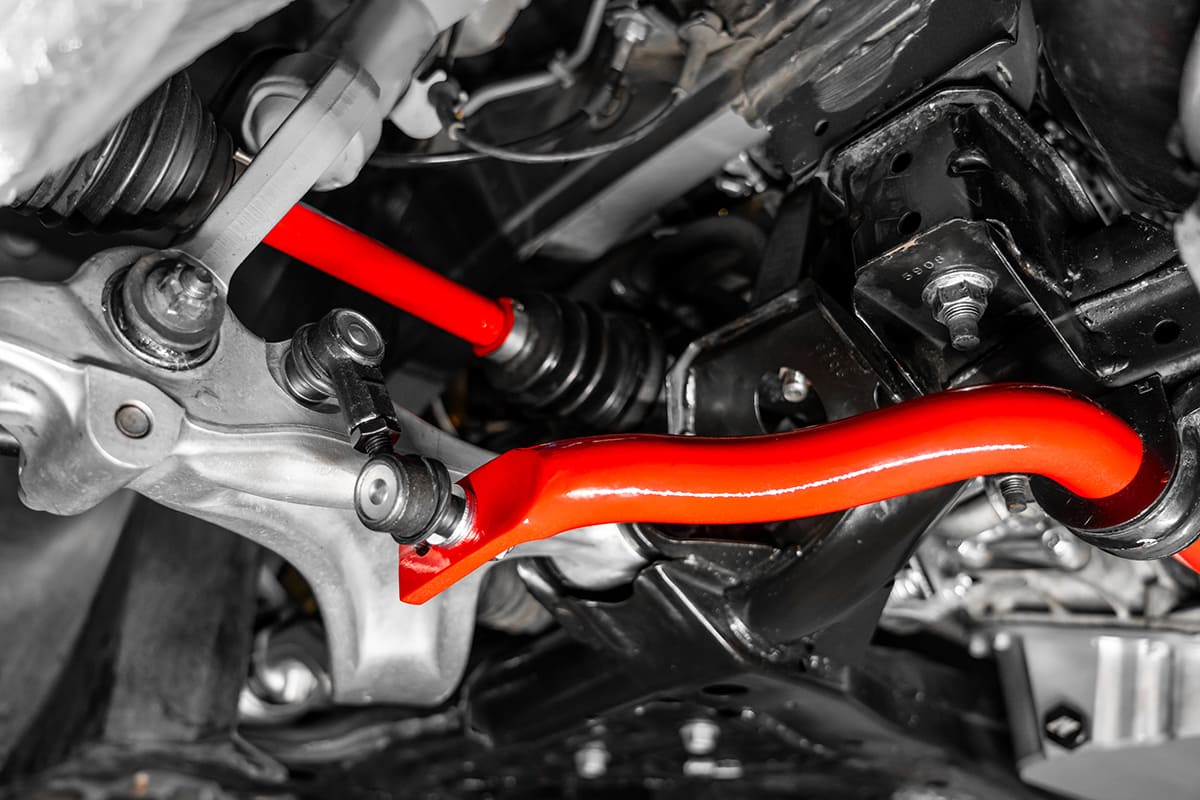

• Whiteline front & rear sway bars ^{( Link )}
• Whiteline front & rear sway bars links ^{( Link )}
• Whiteline front arms bushings ^{( Link )}
• Dixcel Z front and rear pads ^{( Link )}
• Dixcel front and rear discs ^{( Link )}
• Goodridge brake lines ^{( Link )}
• Motul RBF660 fluid ^{( Link )}

Interior

• Motec C1212 digital cluster
• T1R C1212 dash wiring kit
• T1R Motec C1212 mount
• Titan Motorsport roll cage
• Alpha Performance splash guard ^{( Link )}
• Custom alcantara steering wheel and dashboard
• By All Stars Custom seat belts

Exterior

• OEM
